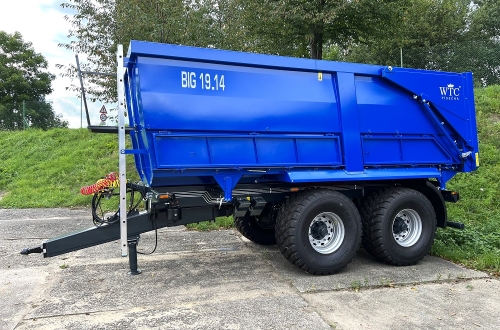

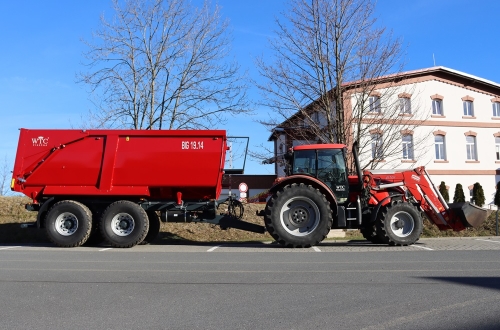

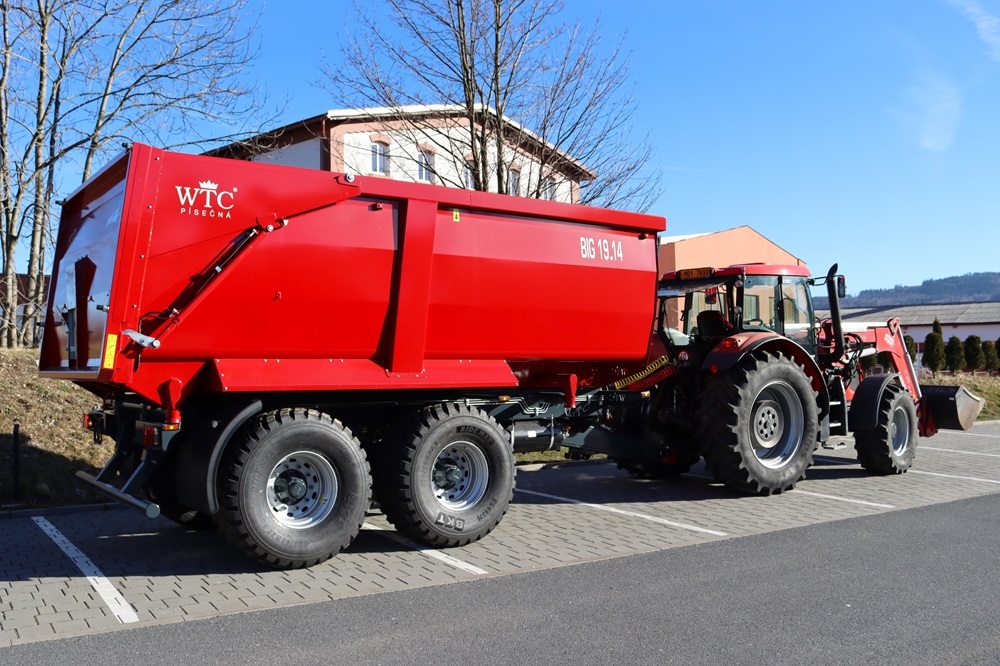

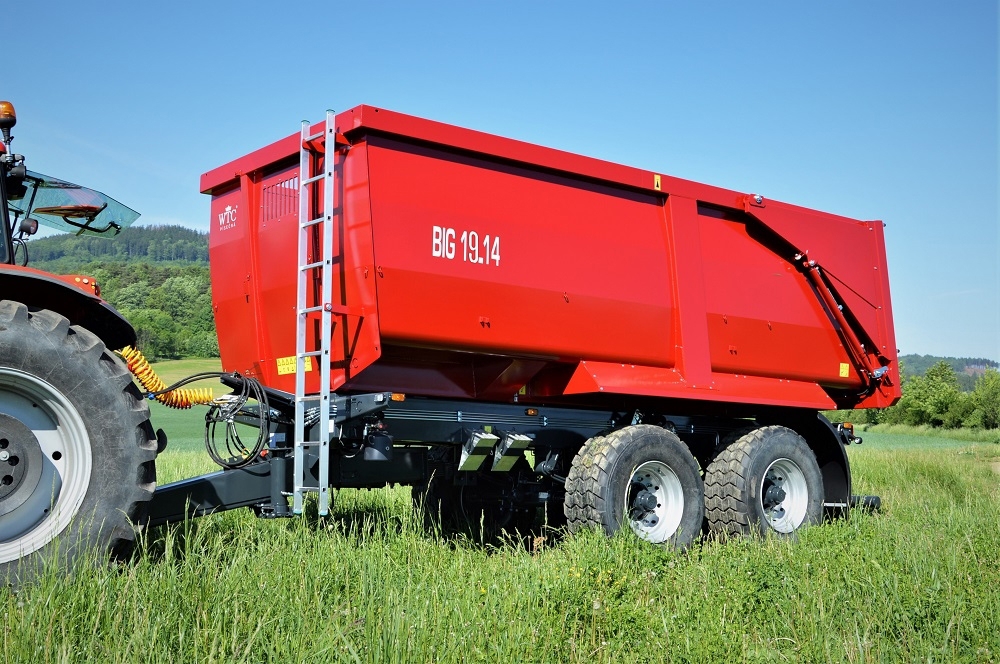

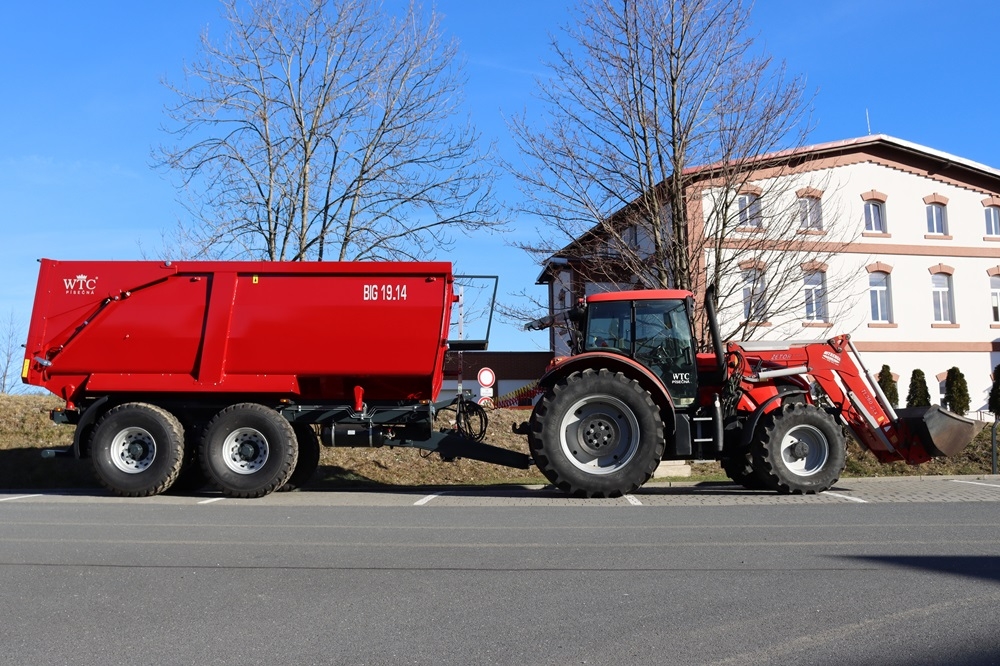

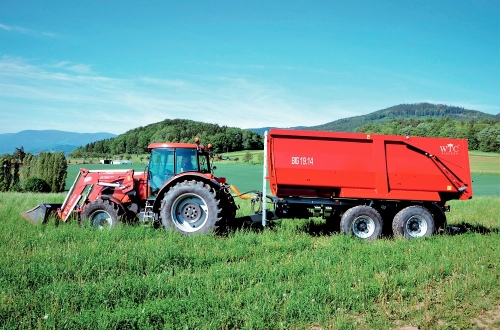

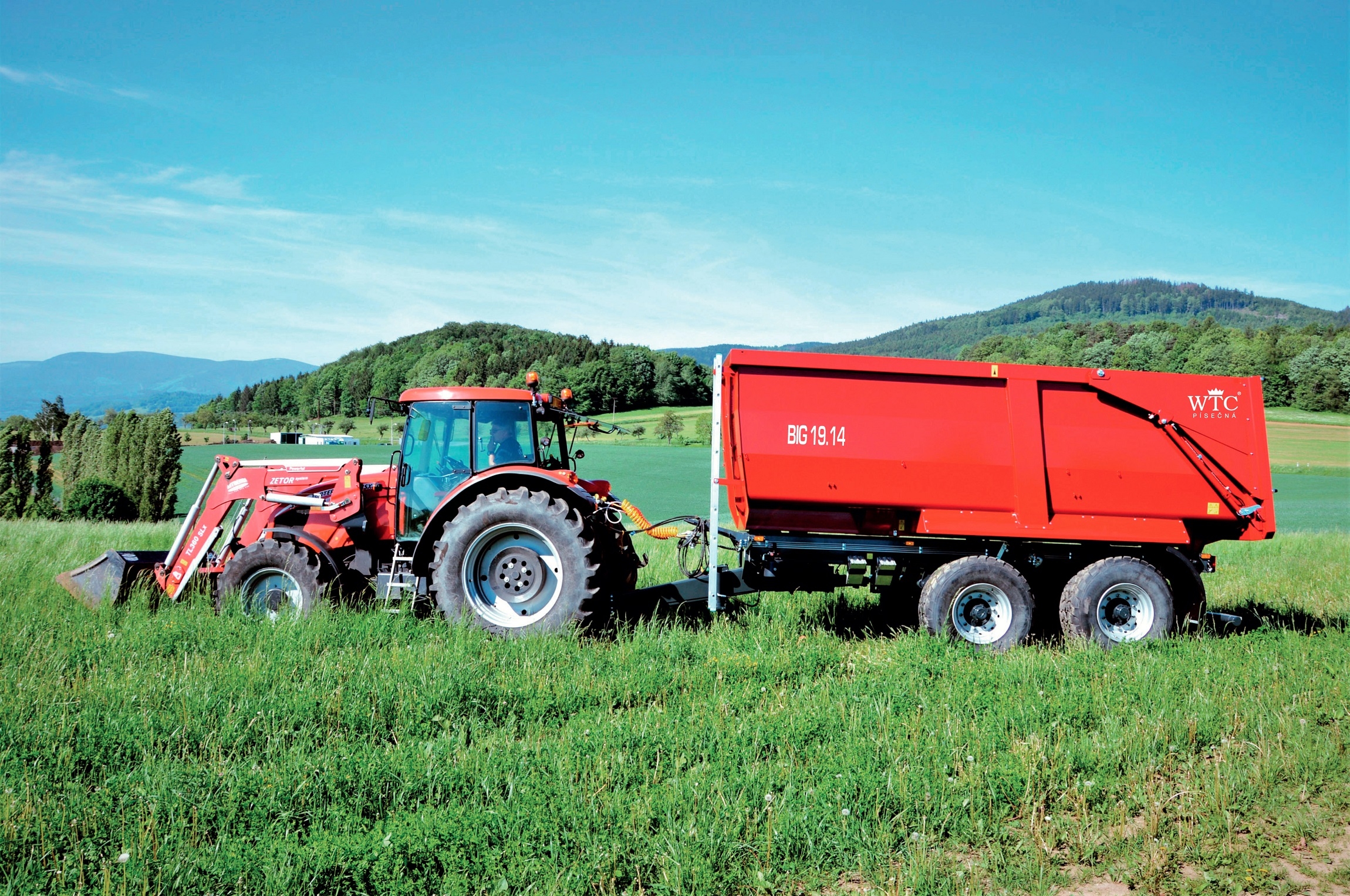

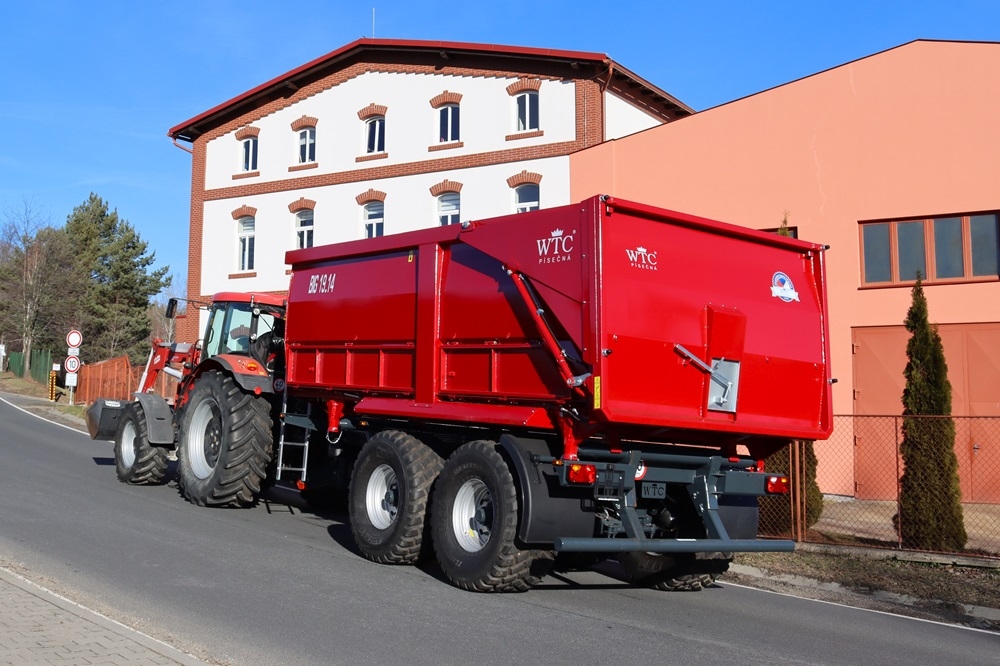

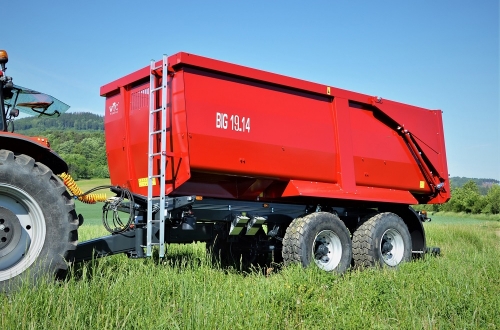

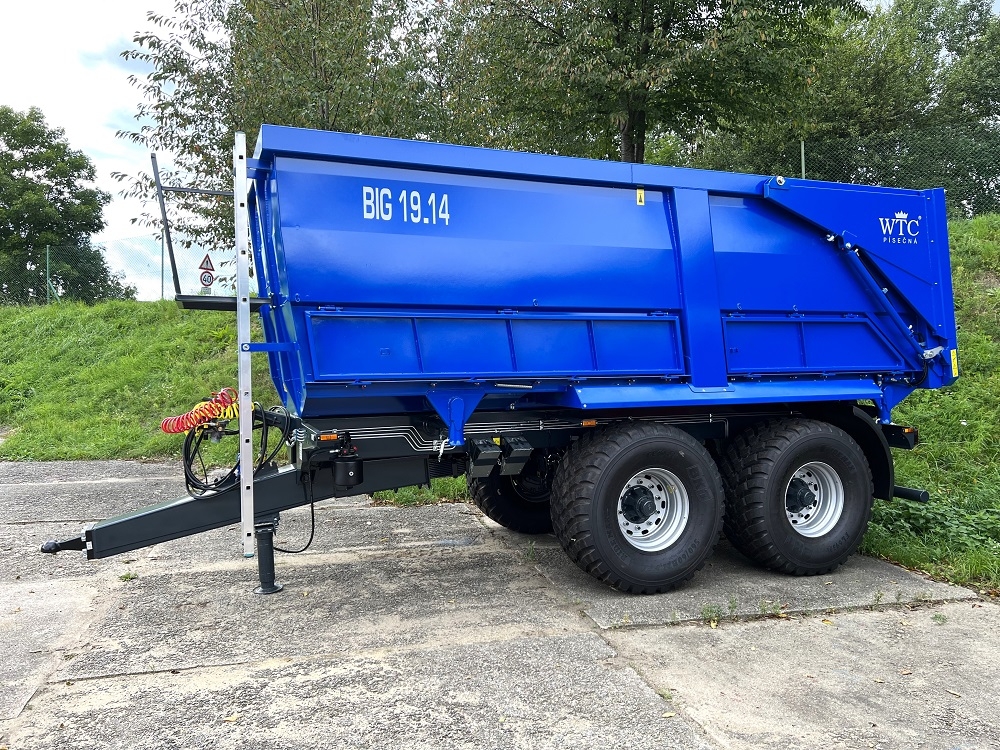

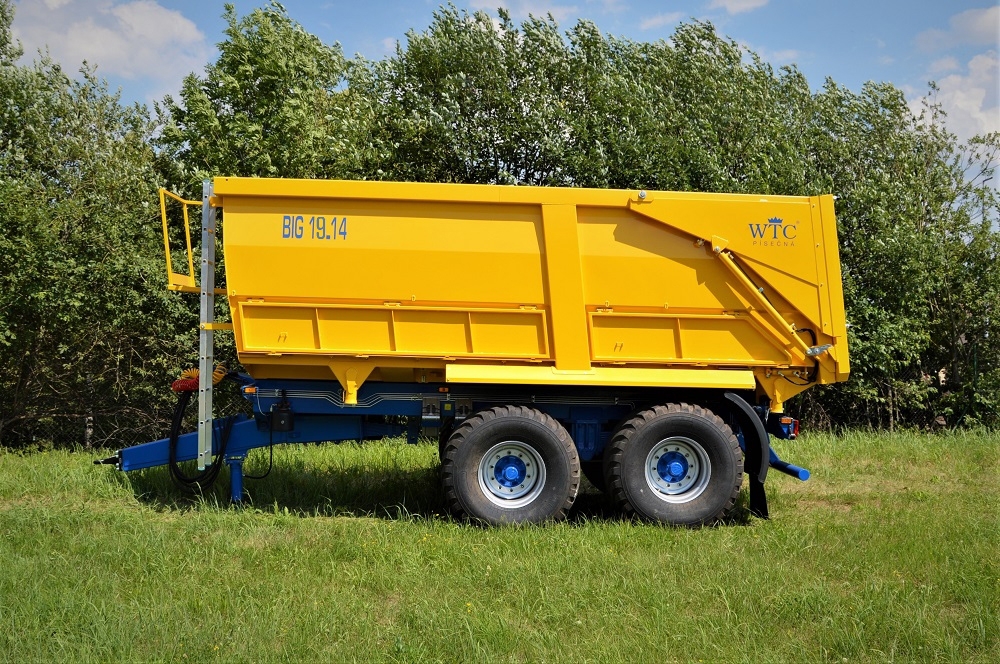

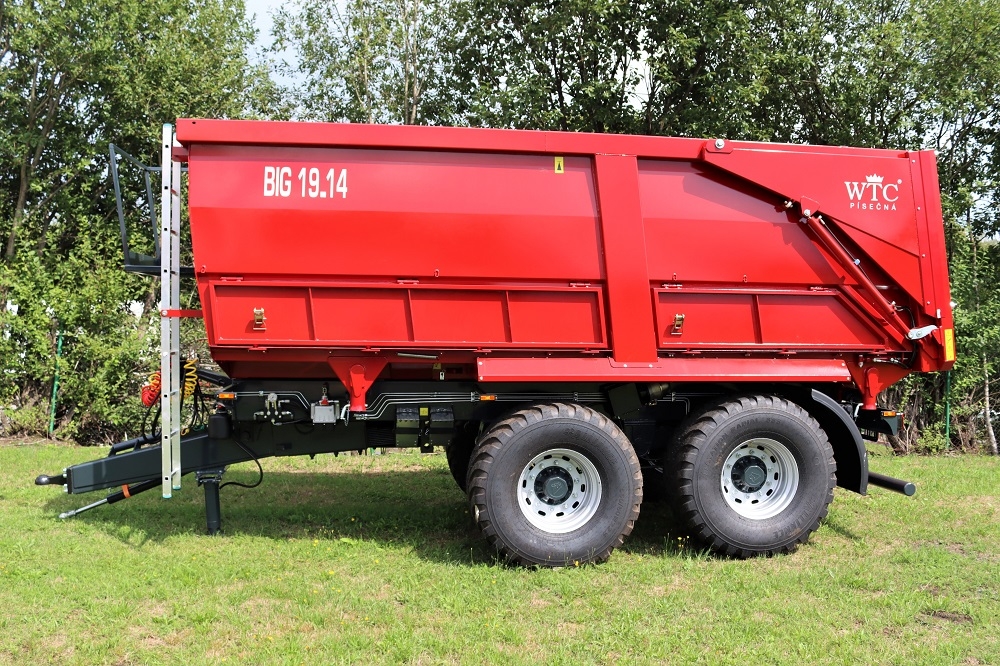

Tractor trailer BIG 19.14

Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14
Standard equipment

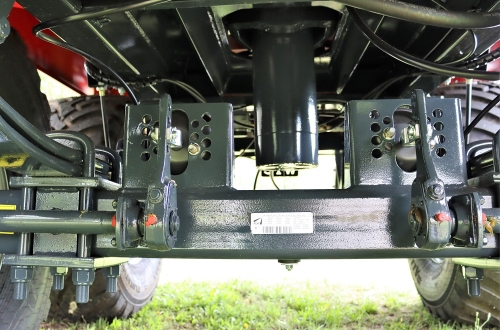

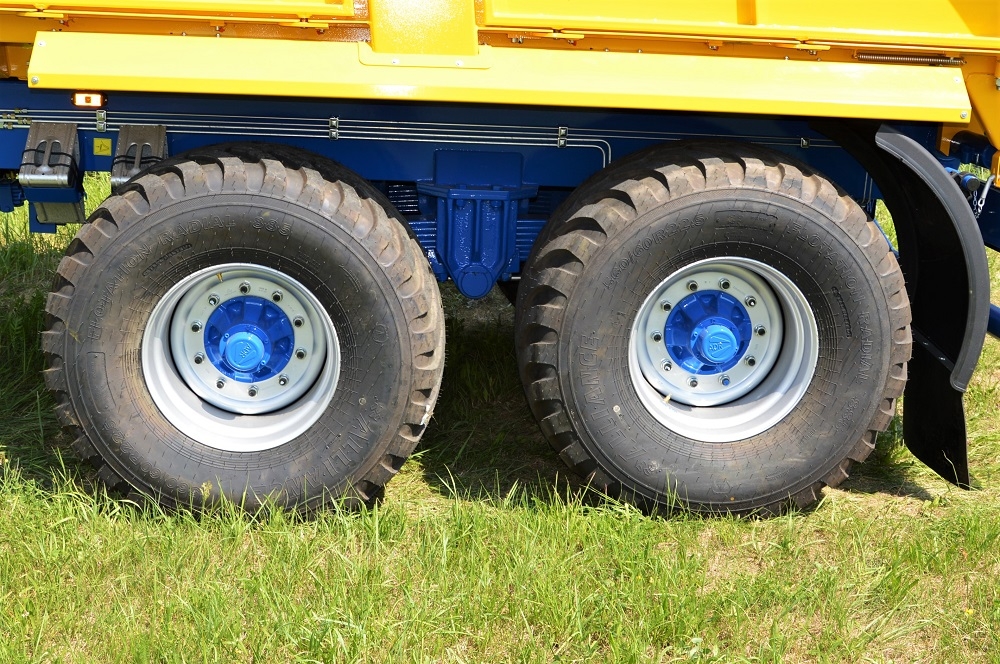

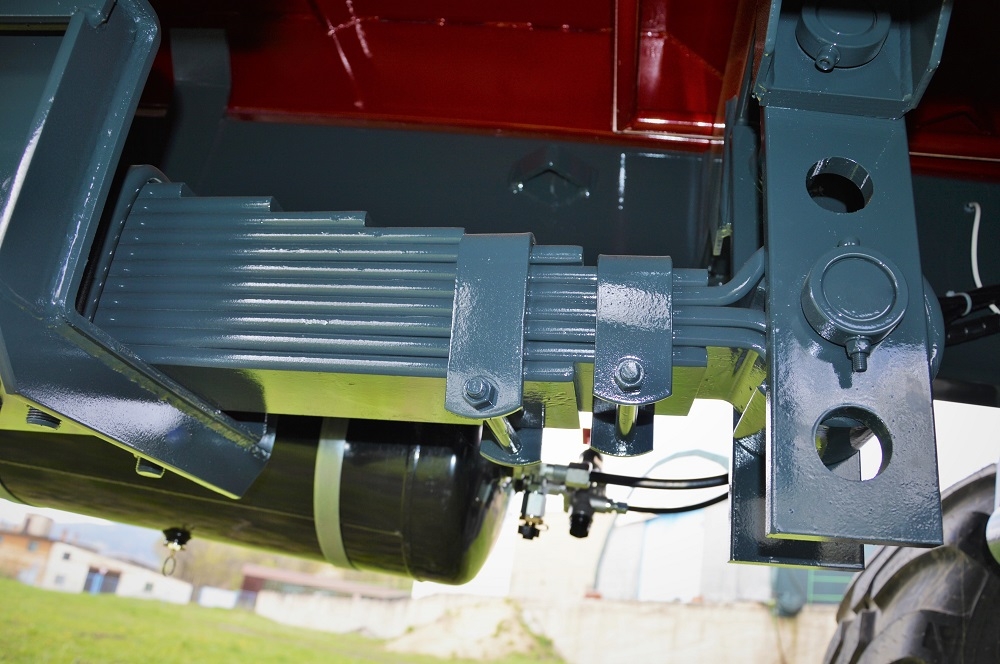

  • TANDEM suspended axle ADR
  • total permissible weight 19 000 kg
  • loading capacity 14 000 kg
  • platform (tank body): 5,24 m x 2,25 m
  • body height 1,00 m = 11,8 m3

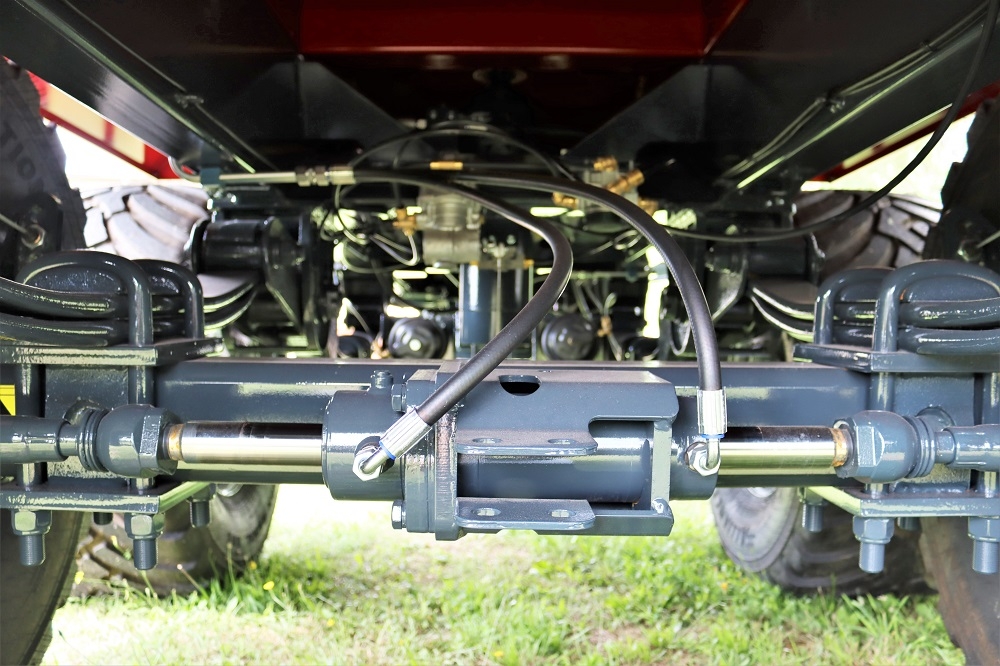

  • spring suspended height-adjustable drawbars

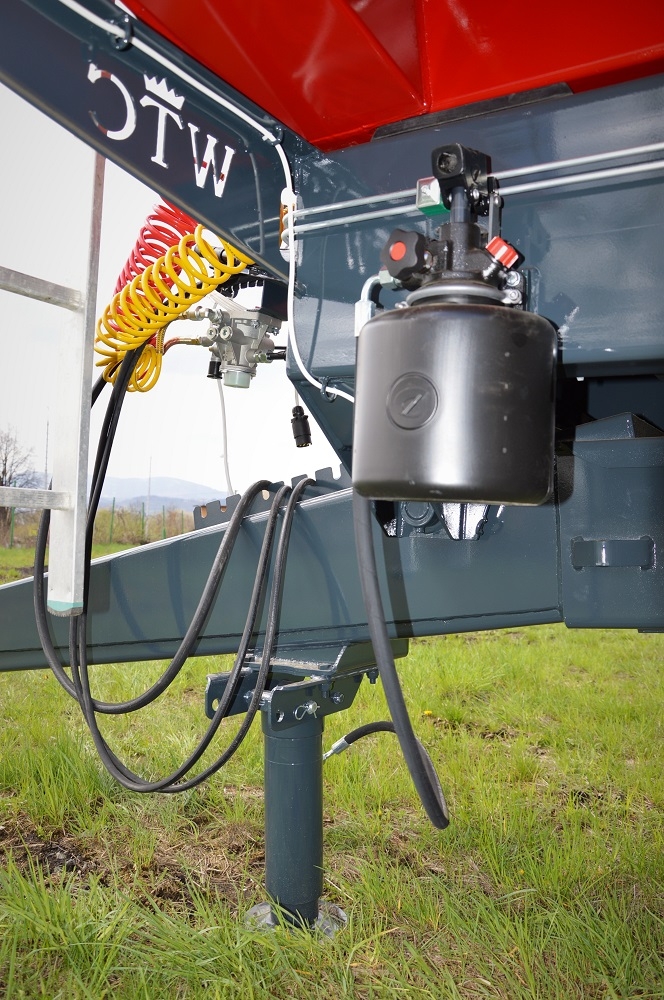

  • hydraulic drawbar support with pump
  • hydraulic door opening
  • hydraulic door lock

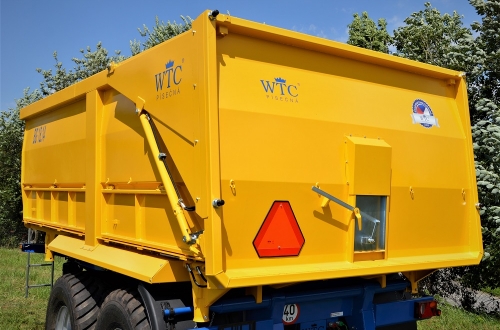

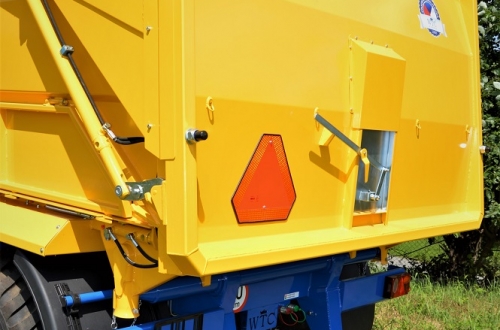

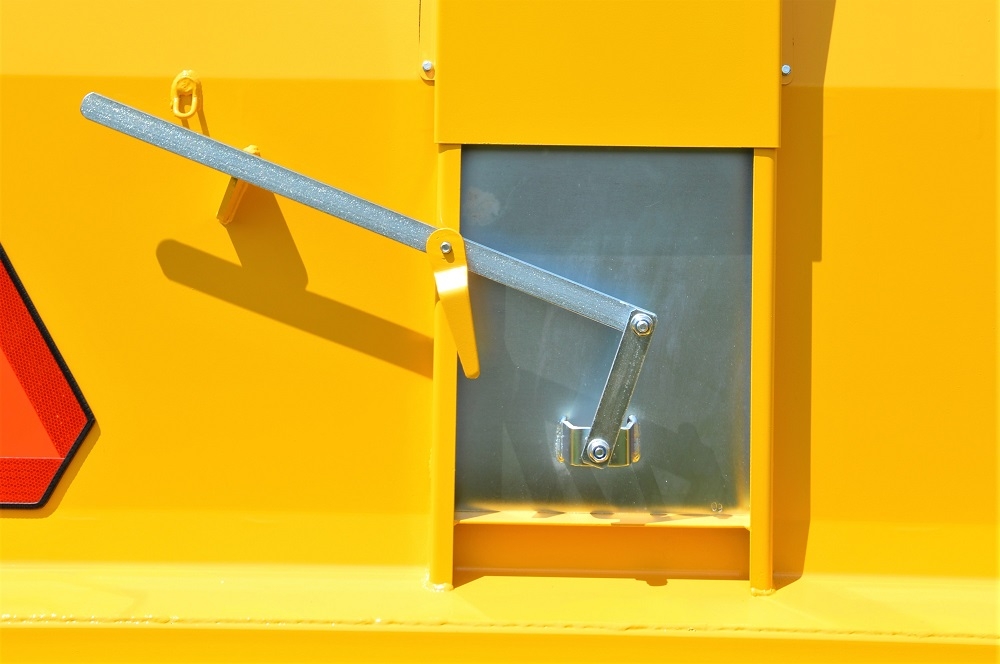

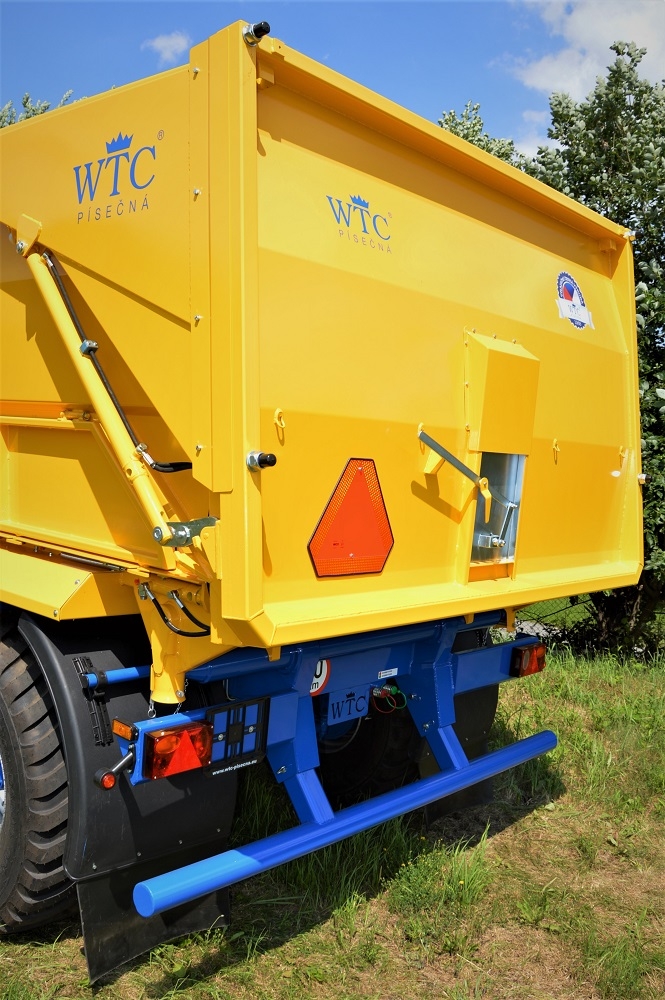

  • rear dump hatch
  • automatic parking brake

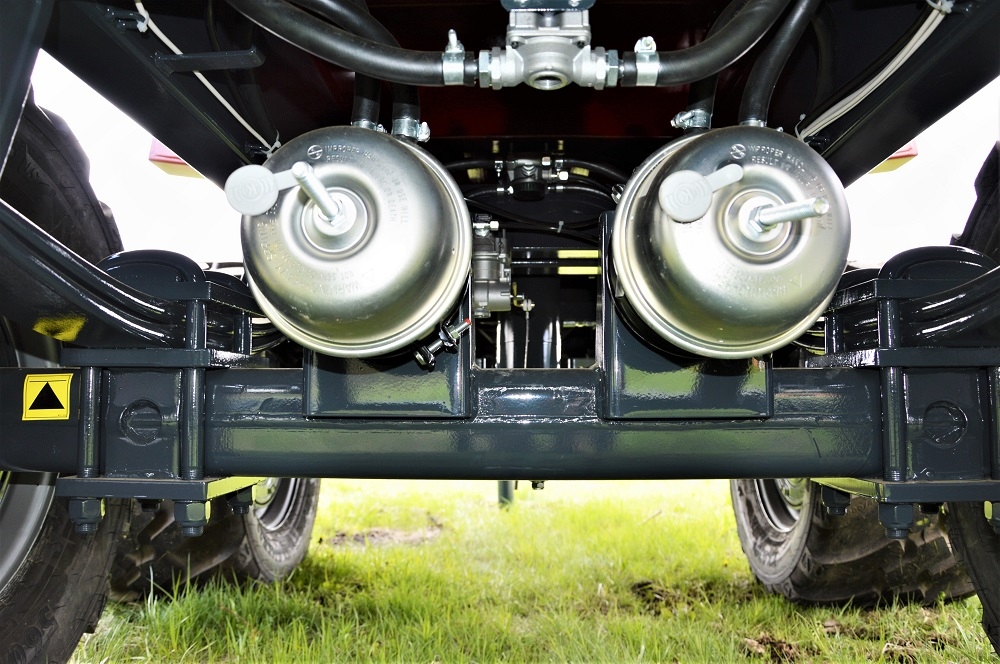

  • automatic brake load sensing controller
  • towing hitch Scharmüller ridig 40/50 mm / K-80
  • speed 40 km/hod

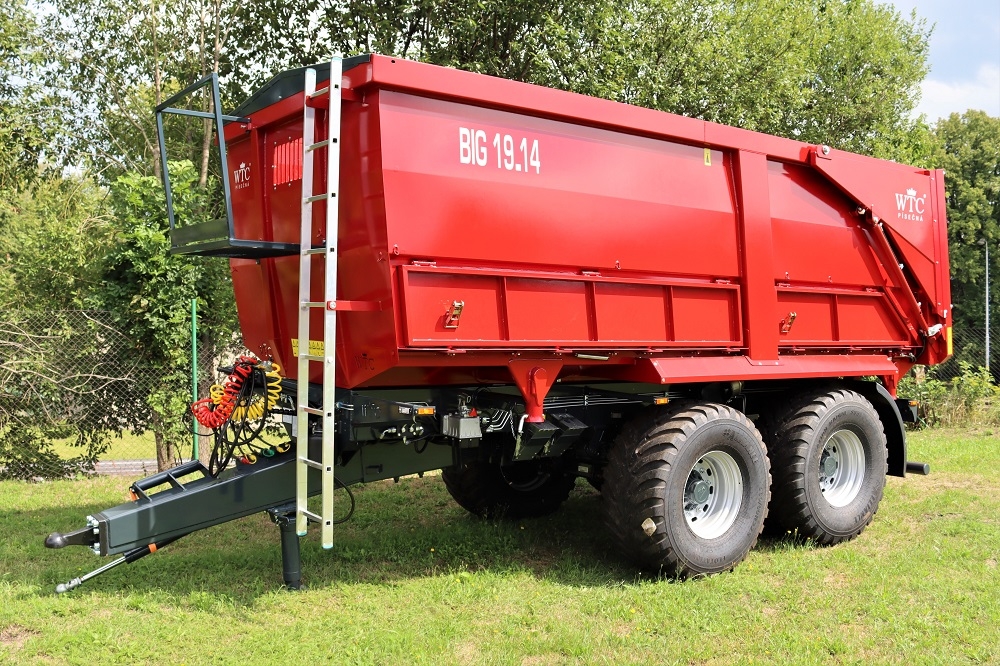

  • aluminium servise ladder
  • inspection window at the front of the body
  • adjustment for superstructures
  • polyurethane paint
Optional equipment
  • TANDEM suspended axle - steelable trailing axle

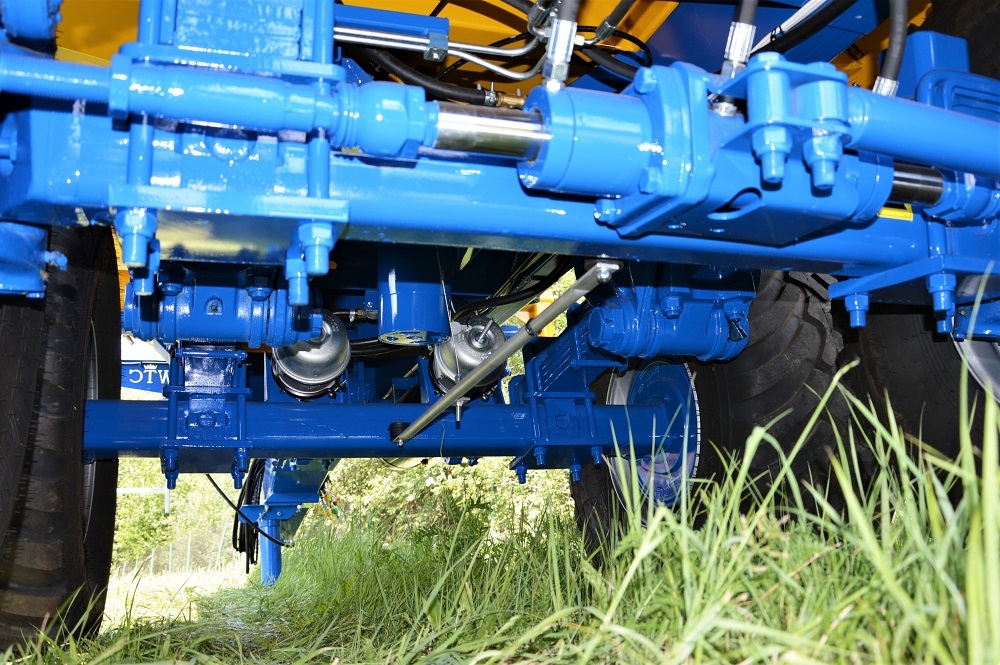

  • TANDEM suspended axle - positive steering
  • BOOGIE suspended axle ADR - steelable trailing axle
  • BOOGIE suspended axle ADR - positive steering
  • air suspension of the axle
  • body height 1,50 m = 17,6 m3
  • two way tilting (flatbed version 1,50 m – hydr. lock)
  • tailpiece 600 mm = 7,1 m3
  • tailpiece 400 mm = 4,7 m3
  • swivel hitch 50 mm
  • service footbridge
  • standard rolling tarpaulin
  • colour on request
  • speed 60 km/hod
  • wheels 385/65R22,5 RE
  • wheels 560/45R22,5 152D BKT FL-630 Plus TL
  • wheels 560/45 R22,5 ALLIANCE 885 Steel Belted
  • wheels 560/45 R22,5 BKT FL-693 TL
  • wheels 560/45 R22,5 NOKIAN Country King TL
  • wheels 560/60R22,5 Mitas AR 02
  • wheels 560/60R22,5 161D BKT FL-630 Plus TL
  • wheels 560/60R22,5 Alliance 885 Steel Belted
  • wheels 560/60R22,5 Alliance 390
  • wheels 560/60R22,5 161D Country King TL
  • wheels 560/60-22.5TL Michelin
Technical parameters
Number of axles
2
Technically permissible mass (kg)
19 000
Max. payload (kg)
14 000
Body Capacity - 1.50 m (m3)
17,6
Volume Extension 0,4 m (m3)
4,7
Volume Extension 0,6 m (m3)
7,1
Platform width (m)
2,25
Length of usable space (m)
5,24
Overall length (m)
6,98
Overall width - basic (m)
2,55
Maximum speed (km/h)
40 / 60

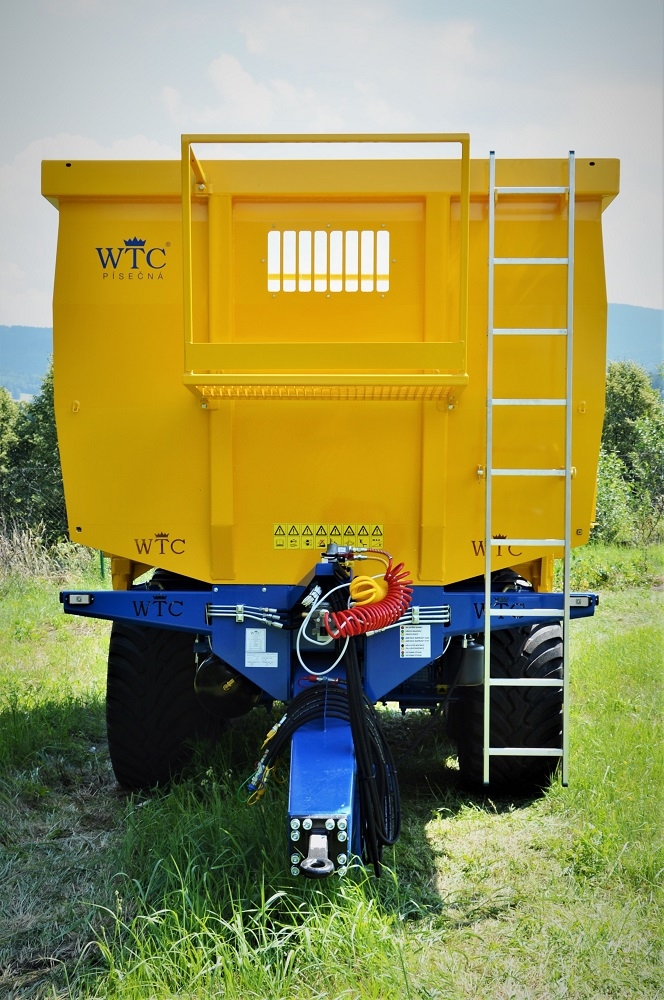

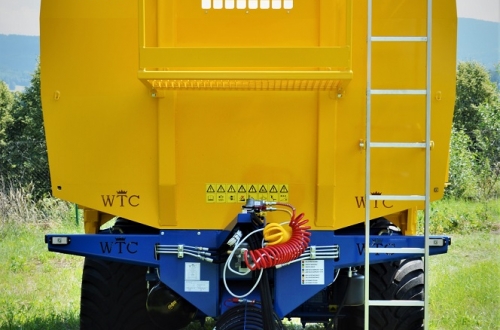

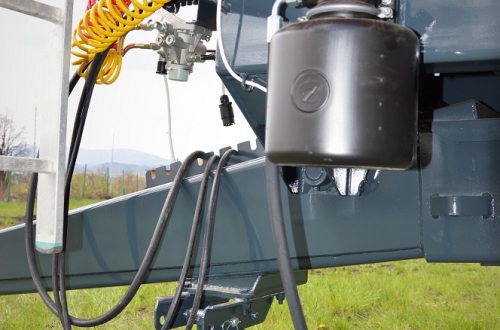

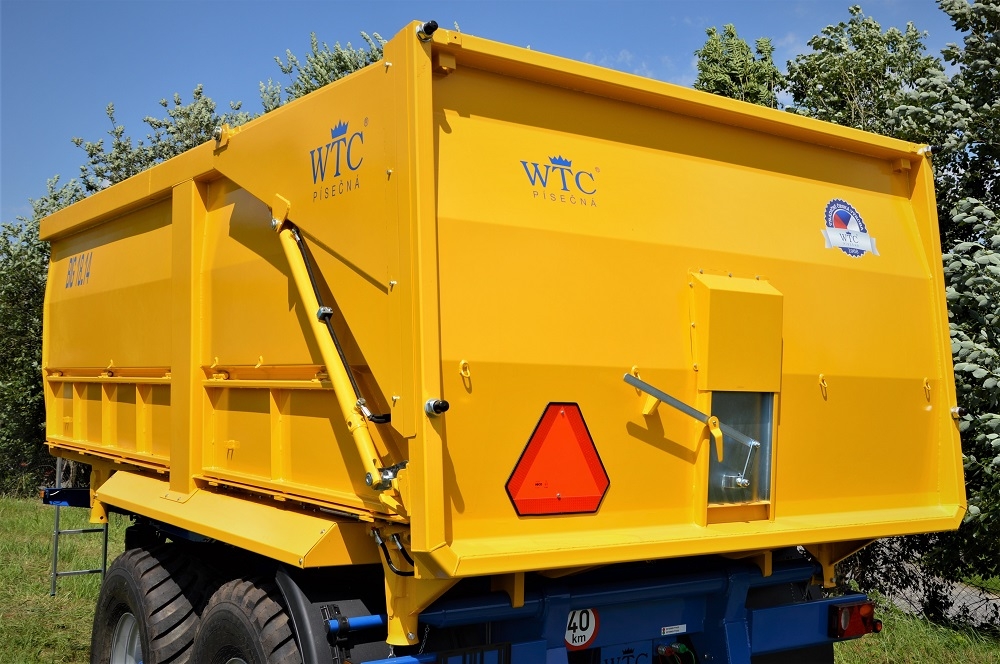

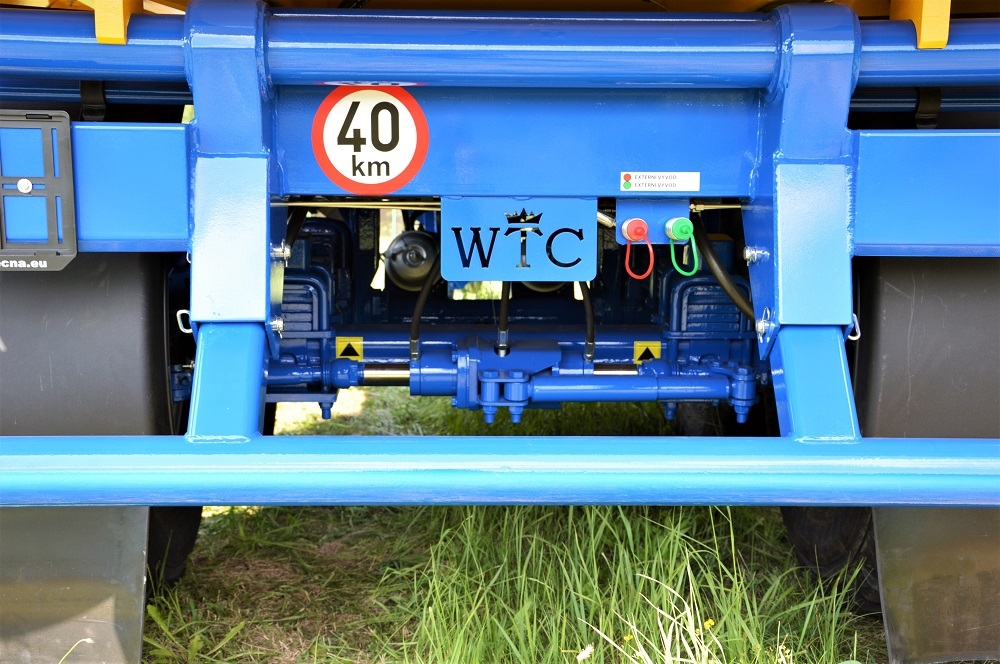

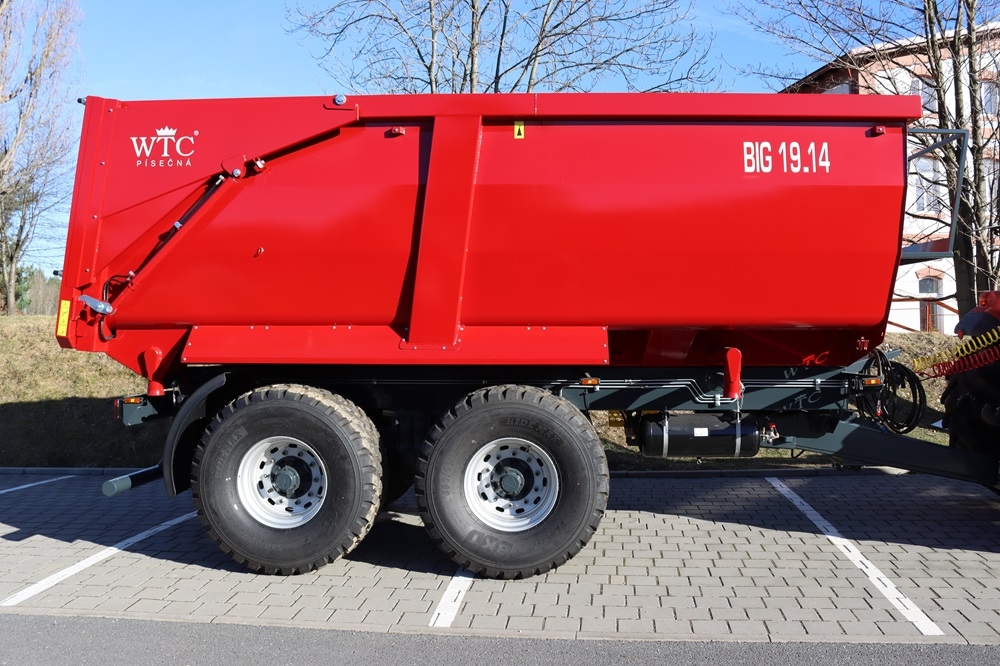

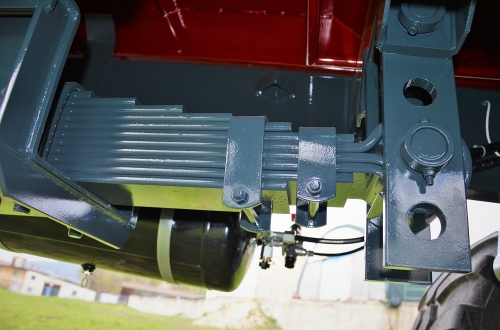

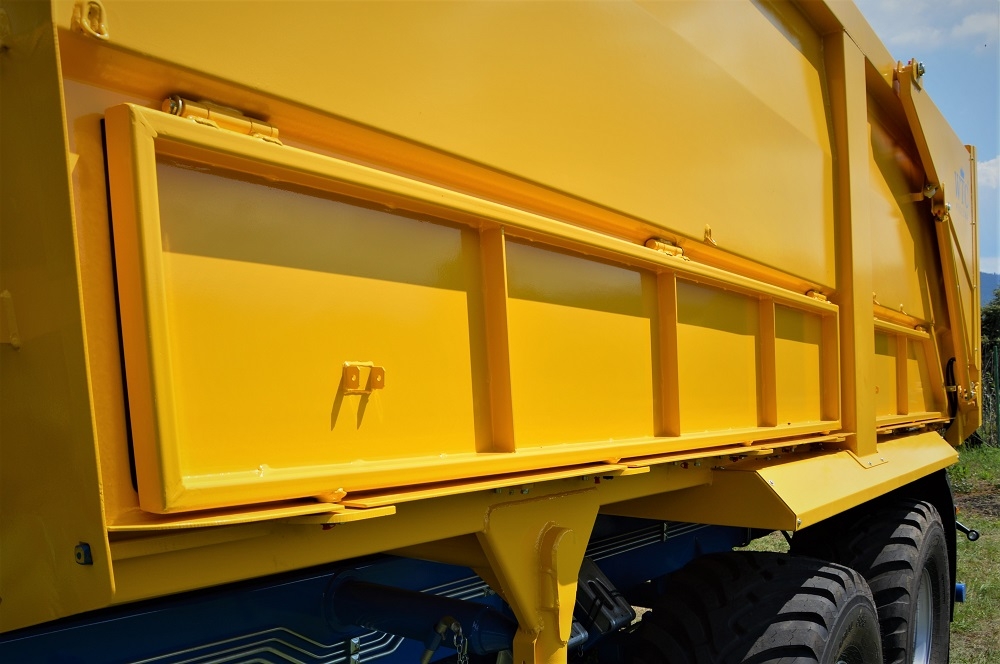

Photo gallery
Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14Tractor trailer BIG 19.14
Video
Tractor trailer BIG 19.14
Inquiry
If you are interested in any of our products, please do not hesitate to use the simple inquiry form. The sent question will be perceived as completely non-binding. We will respond to your request as soon as possible.
