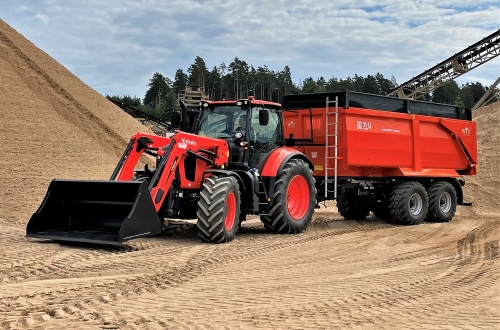

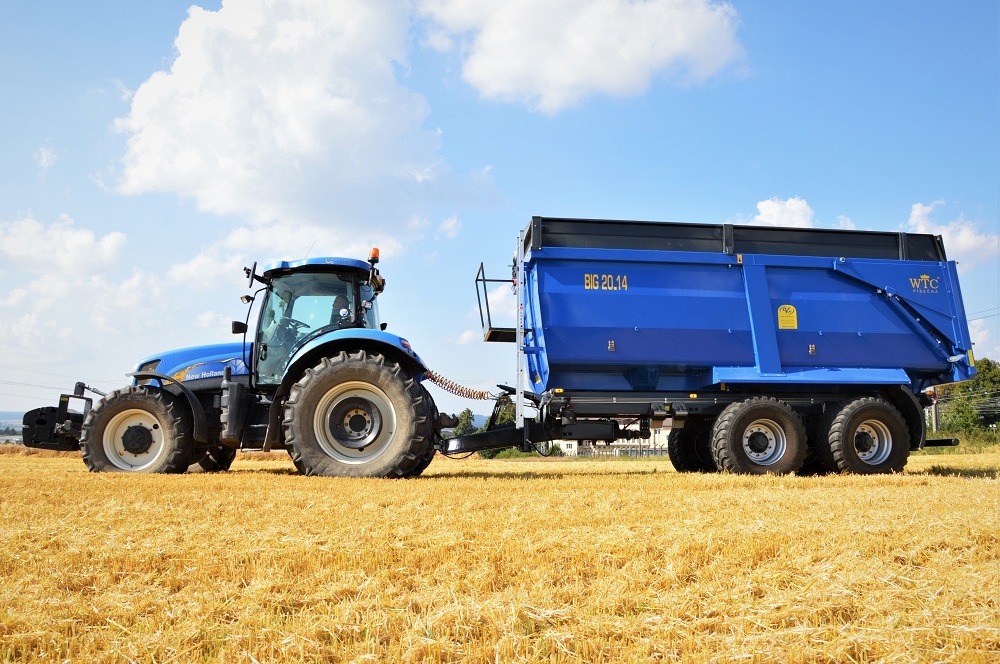

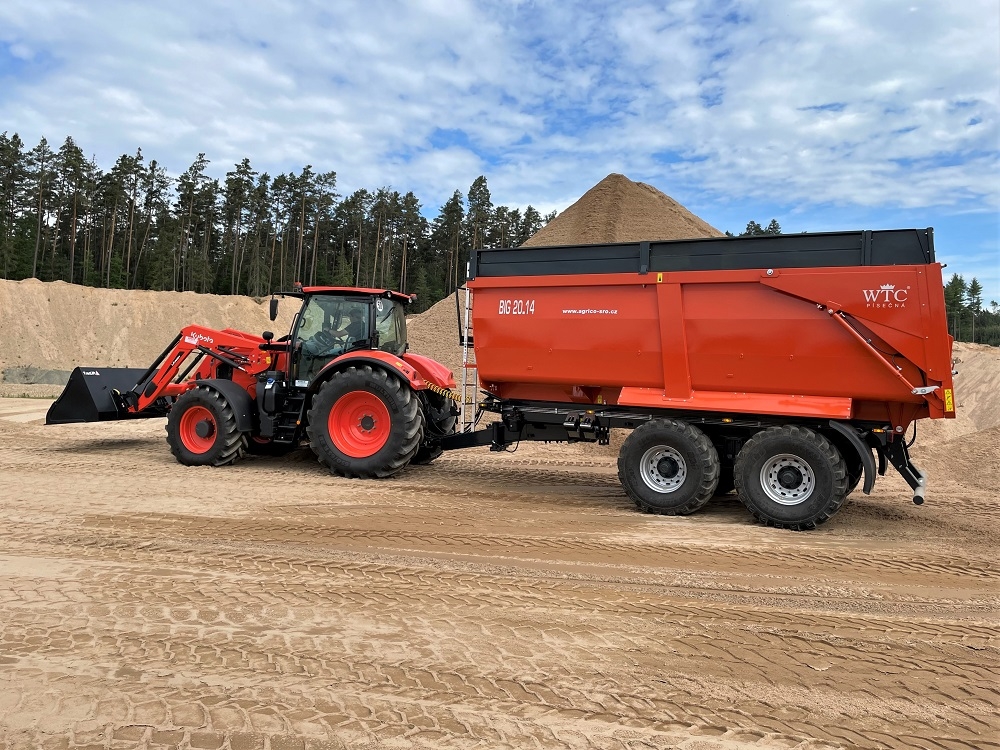

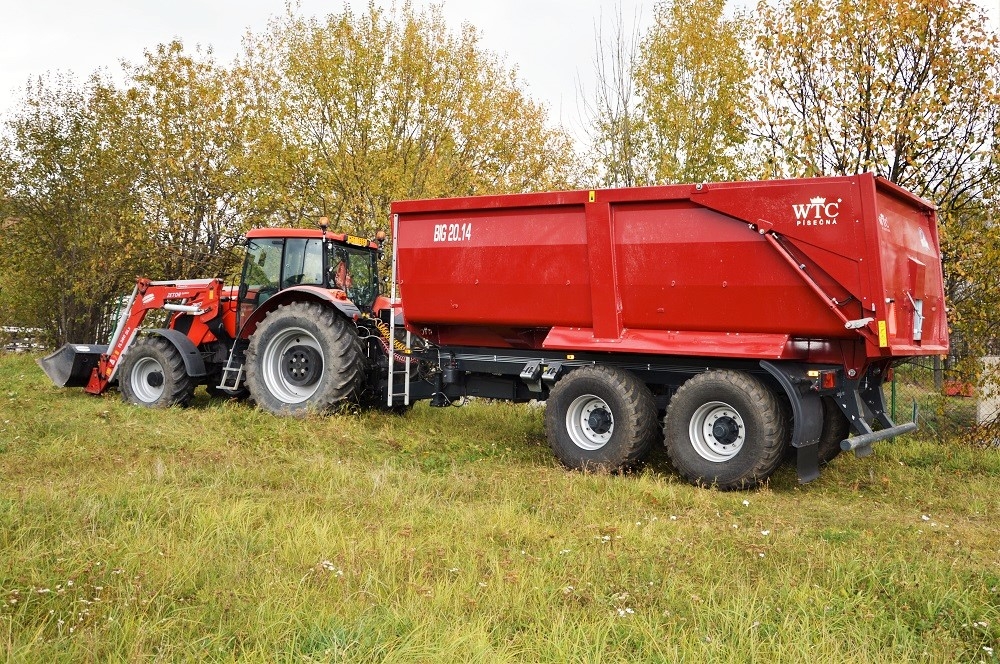

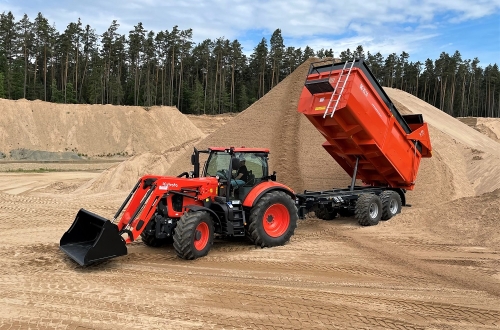

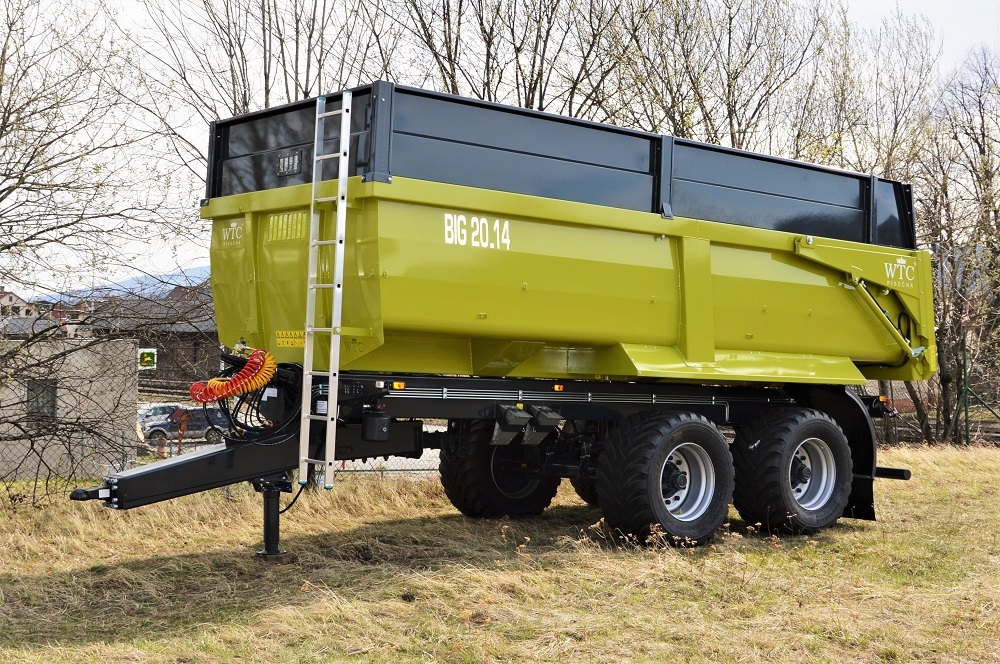

Tractor trailer BIG 20.14

Tractor trailer BIG 20.14Tractor trailer BIG 20.14Tractor trailer BIG 20.14Tractor trailer BIG 20.14
Standard equipment
  • TANDEM suspended axle ADR
  • total permissible weight 20 000 kg
  • loading capacity 14 800 kg
  • platform (tank body): 5,74 m x 2,25 m
  • body height 1,00 m = 12,9 m3
  • spring suspended height-adjustable drawbars
  • hydraulic drawbar support with pump
  • hydraulic door opening
  • hydraulic door lock
  • rear dump hatch
  • automatic parking brake
  • automatic brake load sensing controller
  • towing hitch Scharmüller ridig 40/50 mm/K-80
  • speed 40 km/hod
  • aluminium servise ladder
  • inspection window at the front of the body
  • adjustment for superstructures
  • polyurethane paint
Optional equipment
  • TANDEM suspended axle ADR - steelable trailing axle
  • TANDEM suspended axle ADR - positive steering
  • BOOGIE suspended axle ADR - steelable trailing axle
  • BOOGIE suspended axle ADR - positive steering
  • pneumatic suspension
  • body height 1,50 m = 19,4 m3
  • two way tilting (flatbed version 1,50 m – hydr. lock)
  • tailpiece 400 mm = 5,2 m3
  • tailpiece 600 mm = 7,7 m3
  • swivel hitch 50 mm
  • service footbridge
  • standard rolling tarpaulin
  • colour on request
  • speed 60 km/hod
  • wheels 385/65R22,5 RE
  • wheels 560/45 R22,5 ALLIANCE 885 Steel Belted
  • wheels 560/45 R22,5 BKT FL-693 TL
  • wheels 560/45 R22,5 NOKIAN Country King TL
  • wheels 560/45R22,5 152D BKT FL-630 Plus TL
  • wheels 560/60R22,5 Mitas AR 02
  • wheels 560/60R22,5 161D BKT FL-630 Plus TL
  • wheels 560/60R22,5 Alliance 885 Steel Belted
  • wheels 560/60R22,5 Alliance 390
  • wheels 560/60R22,5 161D Country King TL
  • wheels 560/60-22.5TL Michelin
Technical parameters
Number of axles
2
Technically permissible mass (kg)
20 000
Max. payload (kg)
14 800
Min. operating weight (kg)
5 200
Body Capacity - 1.50 m (m3)
19,4
Volume Extension 0,4 m (m3)
5,2
Volume Extension 0,6 m (m3)
7,7
Platform width (m)
2,25
Length of usable space (m)
5,74
Overall length (m)
7,48
Overall width - basic (m)
2,55
Maximum speed (km/h)
40 / 60

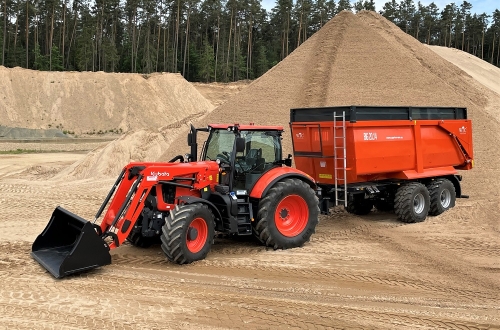

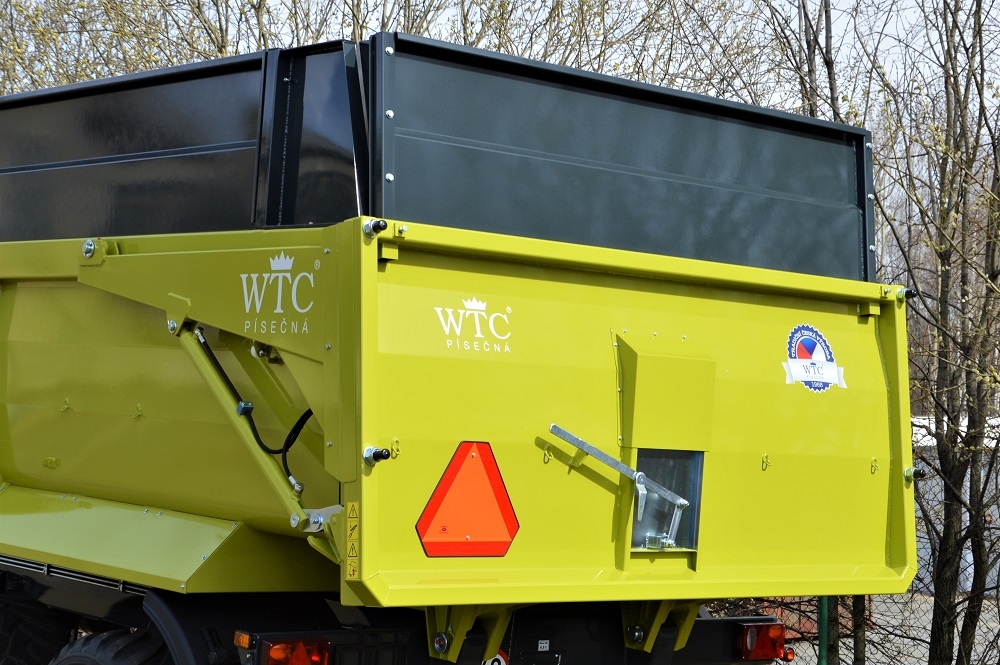

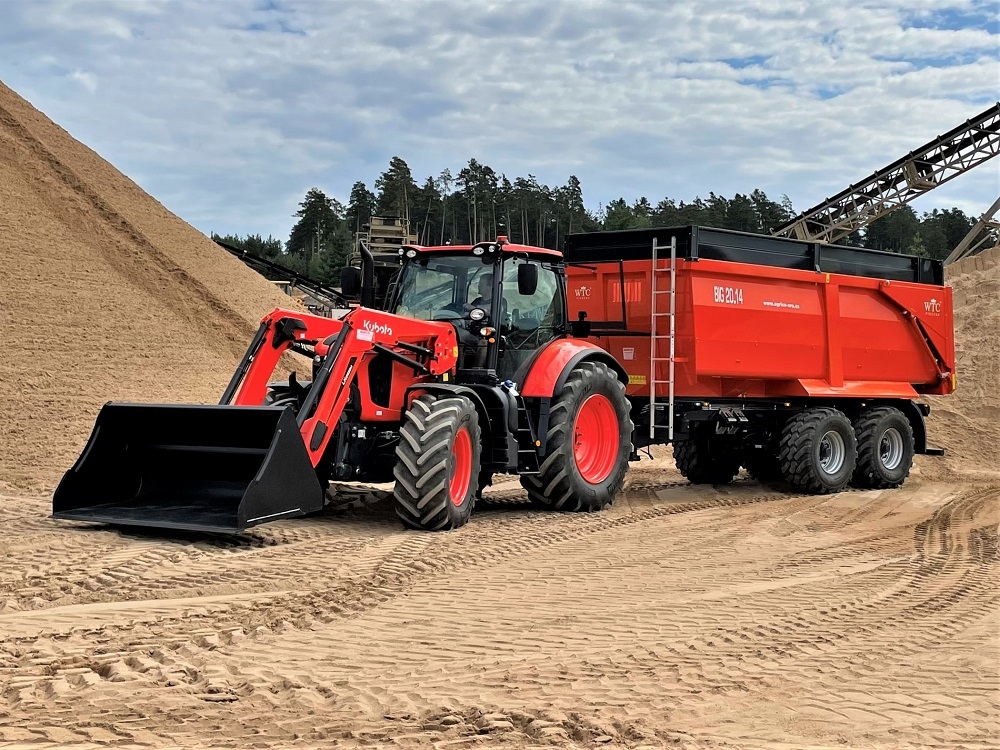

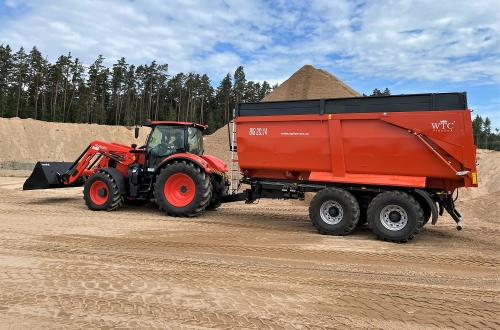

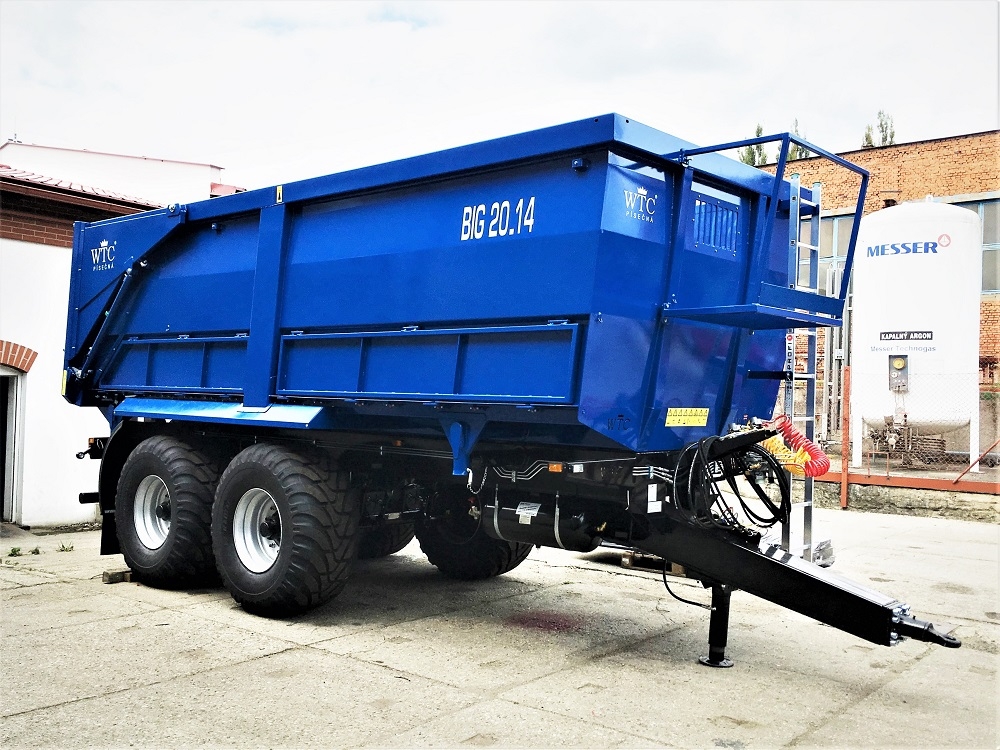

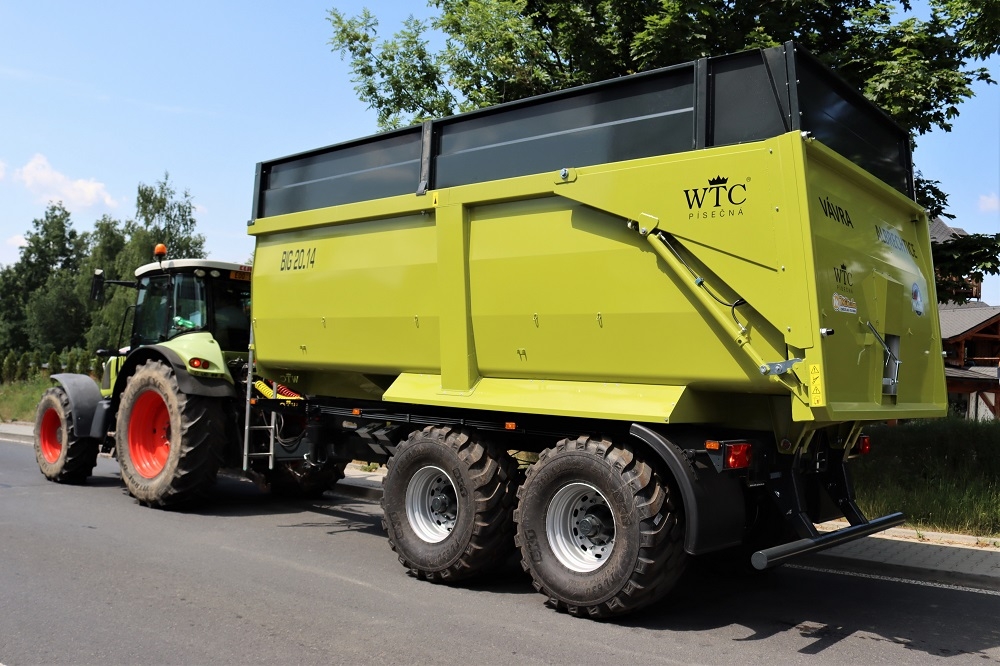

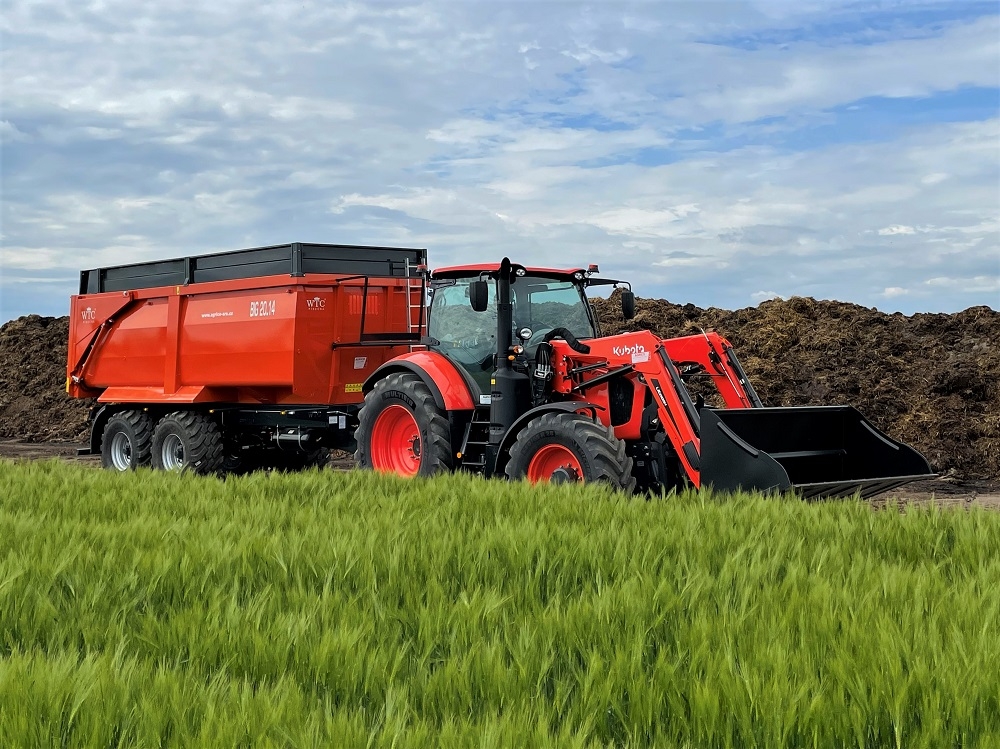

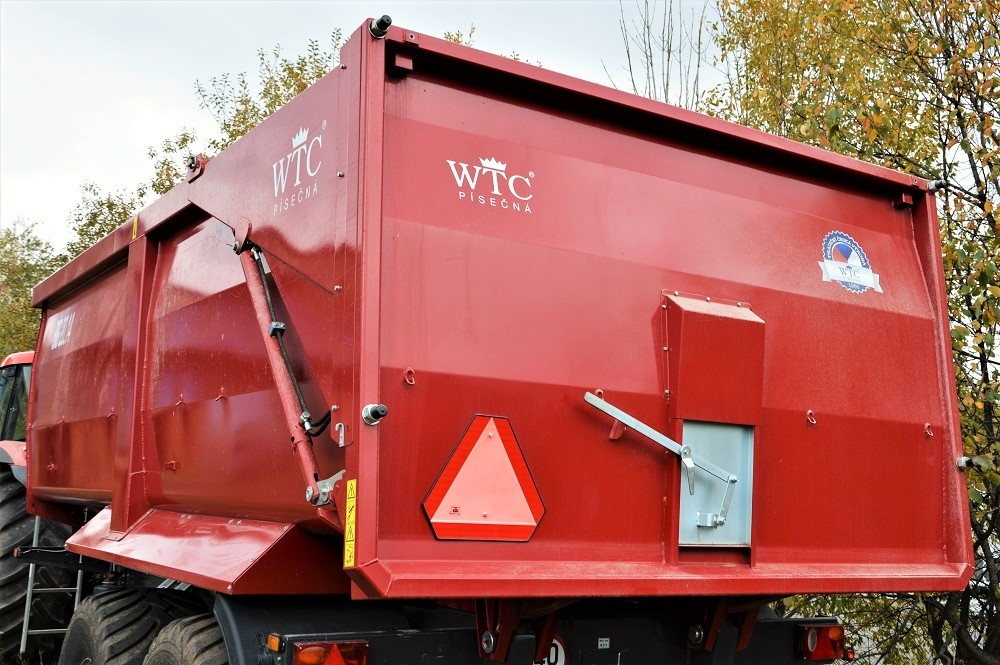

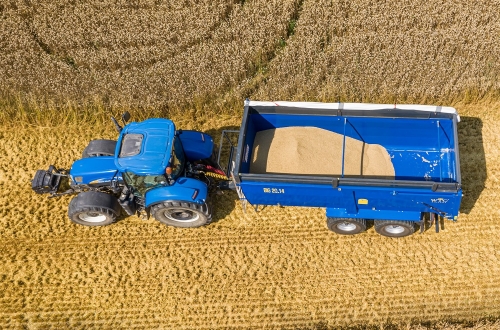

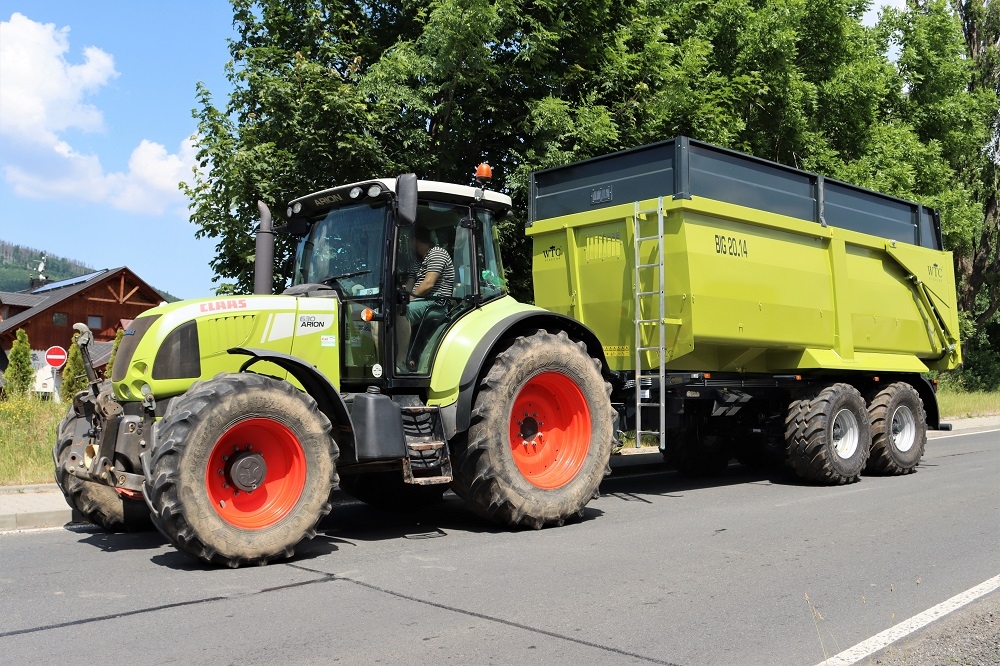

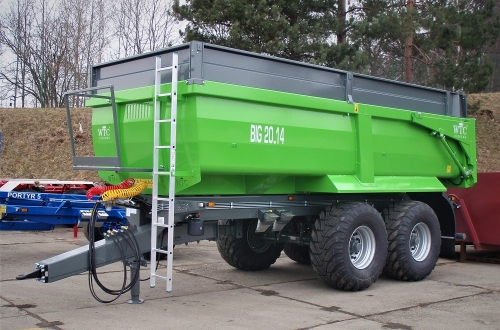

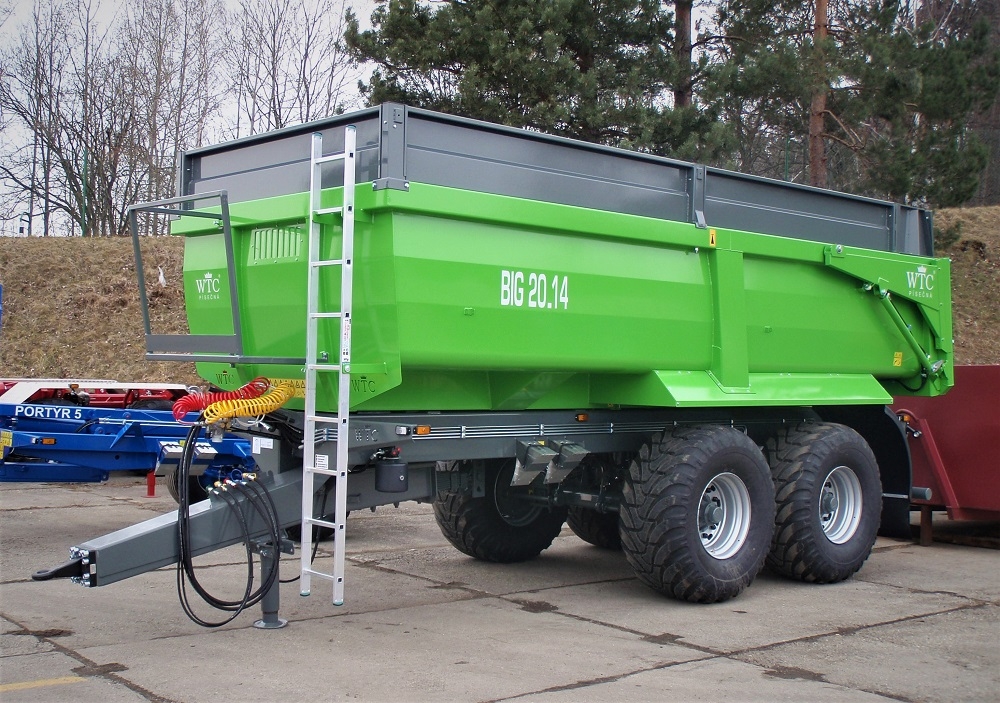

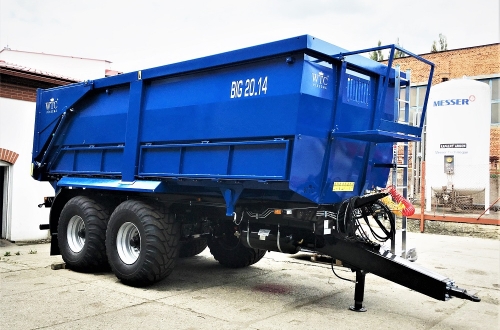

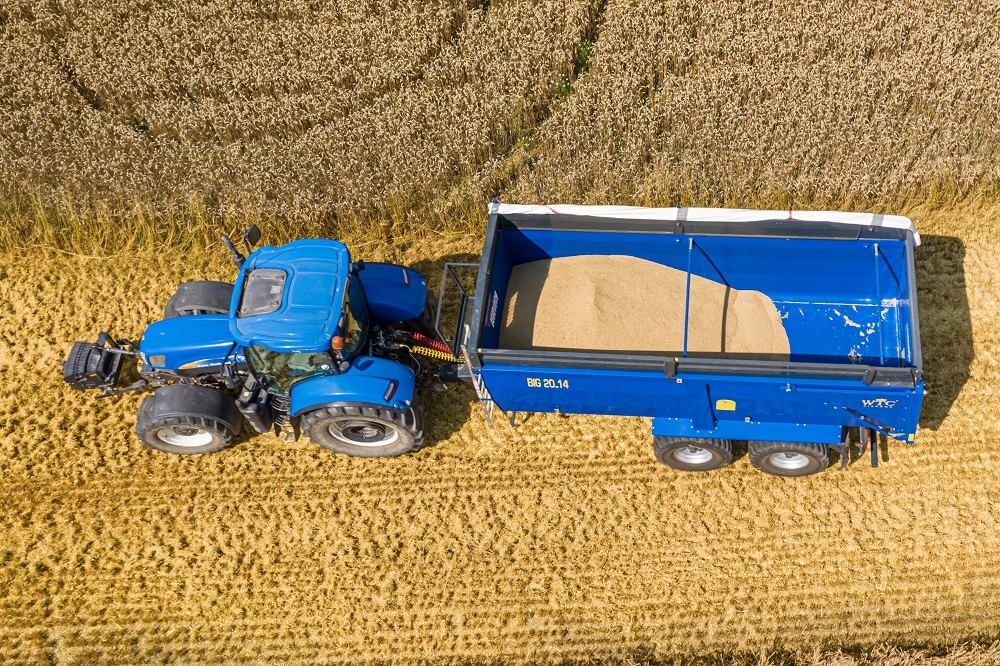

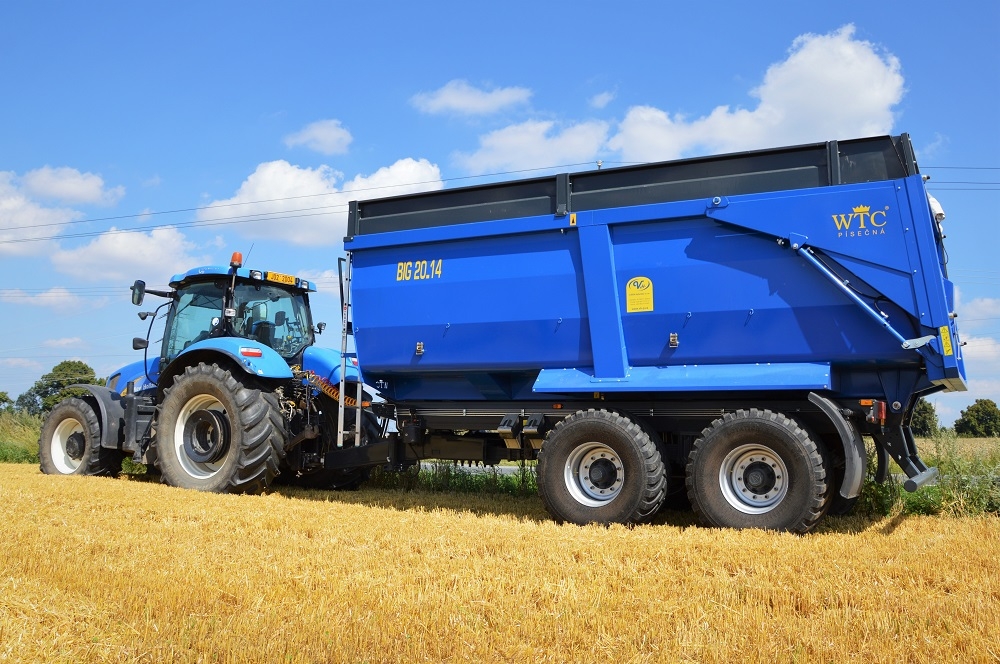

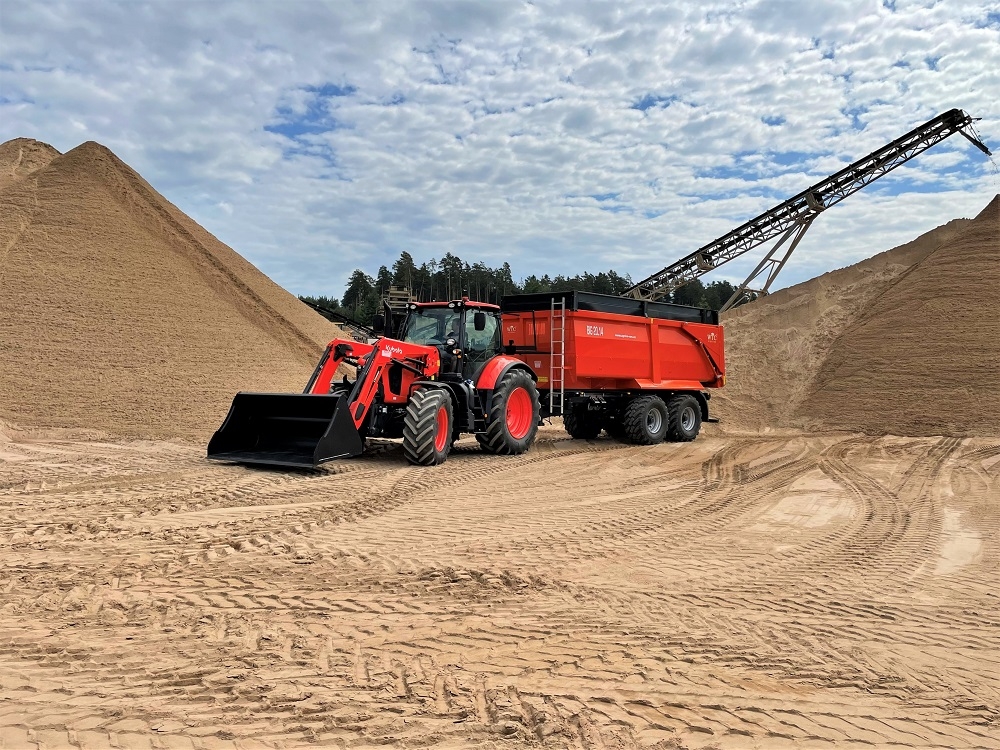

Photo gallery
