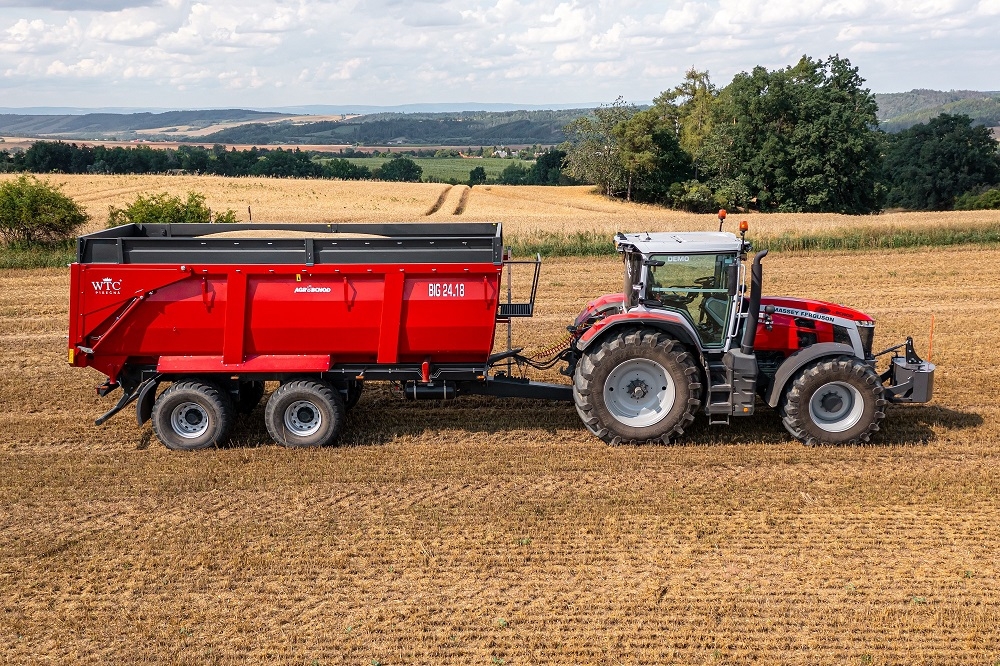

Tractor trailer BIG 24.18

Tractor trailer BIG 24.18Tractor trailer BIG 24.18Tractor trailer BIG 24.18Tractor trailer BIG 24.18
Standard equipment
  • TANDEM suspended axle ADR
  • total permissible weight 23 000 - 24 000 kg
  • loading capacity 18 000 kg
  • platform (tank body): 6,49 m x 2,25 m
  • body height 1,00 m = 14,6 m3
  • spring suspended height-adjustable drawbars
  • hydraulic drawbar support with pump
  • hydraulic door opening
  • hydraulic door lock
  • rear dump hatch
  • automatic parking brake
  • automatic brake load sensing controller
  • towing hitch Scharmüller ridig 50 mm/K-80
  • speed 40 km/hod
  • polyurethane paint

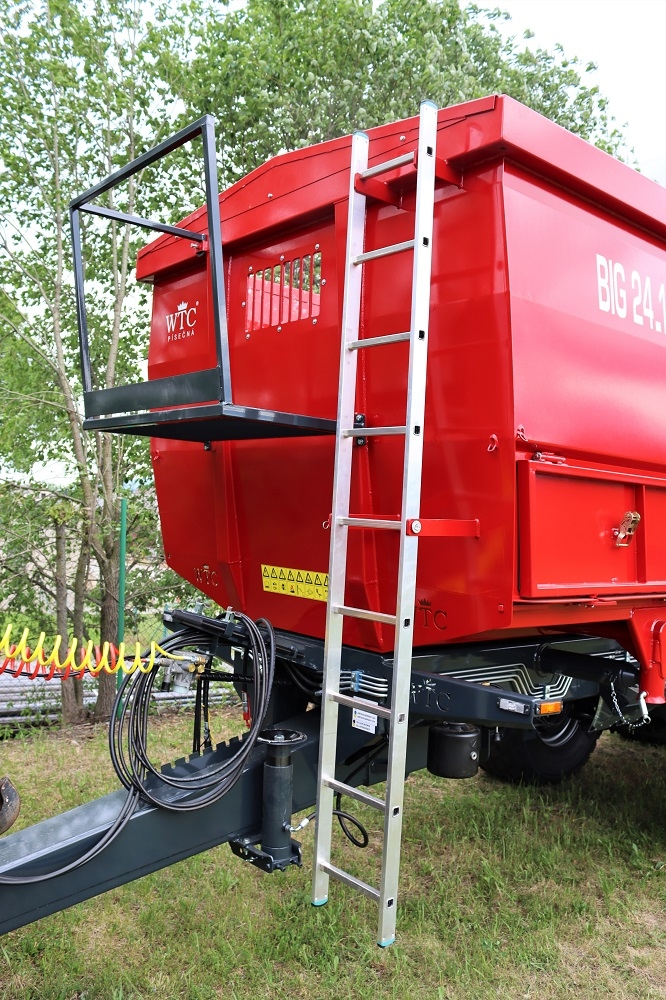

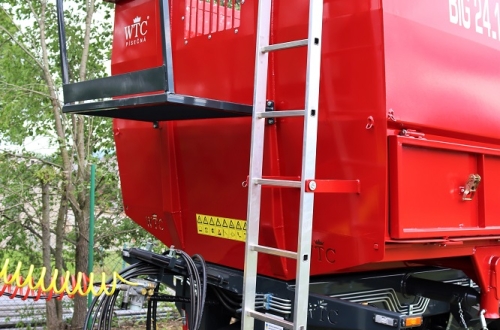

  • aluminium servise ladder
  • inspection window at the front of the body
  • adjustment for superstructures
Optional equipment
  • TANDEM suspended axle ADR - steelable trailing axle
  • TANDEM suspended axle ADR - positive steering

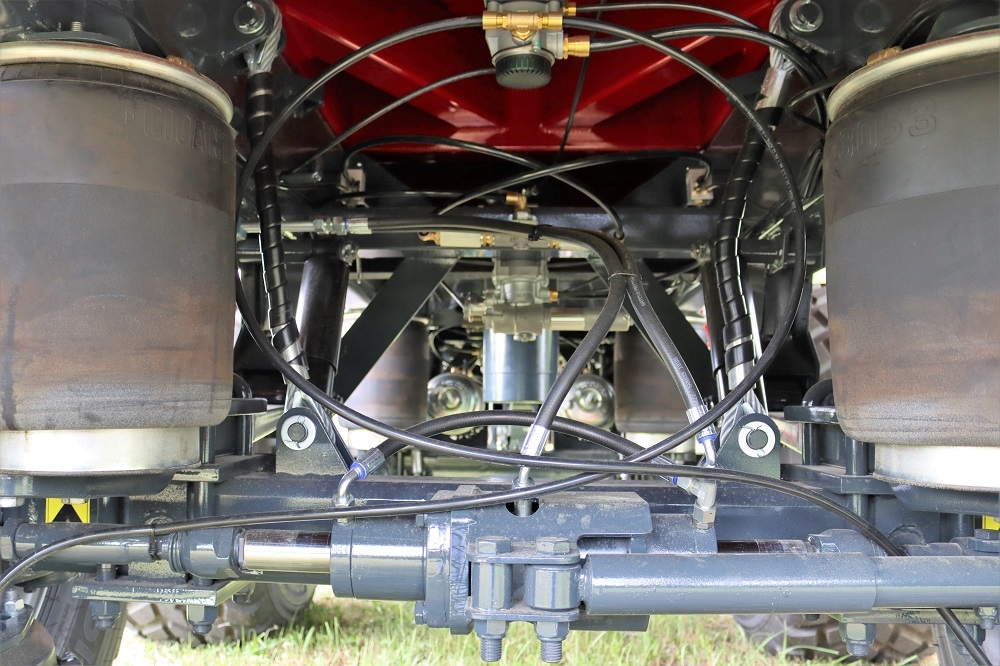

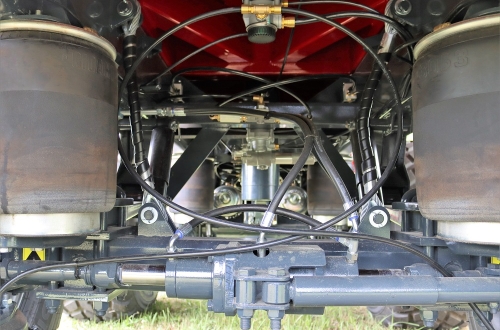

  • air suspension of the axle
  • frame locking while tilting (recommended)
  • body height 1,50 m = 21,9 m3
  • two way tilting (flatbed version 1,50 m – hydr. lock)
  • tailpiece 400 mm = 5,8 m3
  • tailpiece 600 mm = 8,8 m3
  • swivel hitch 50 mm
  • service footbridge
  • standard rolling tarpaulin
  • colour on request
  • speed 60 km/hod
  • wheels 385/65 R22,5 RE
  • wheels 560/60 R22,5 Mitas AR 02
  • wheels 560/60 R22,5 161D BKT FL-630 Plus TL
  • wheels 560/60 R22,5 Alliance 885 Steel Belted
  • wheels 560/60 R22,5 Alliance 390

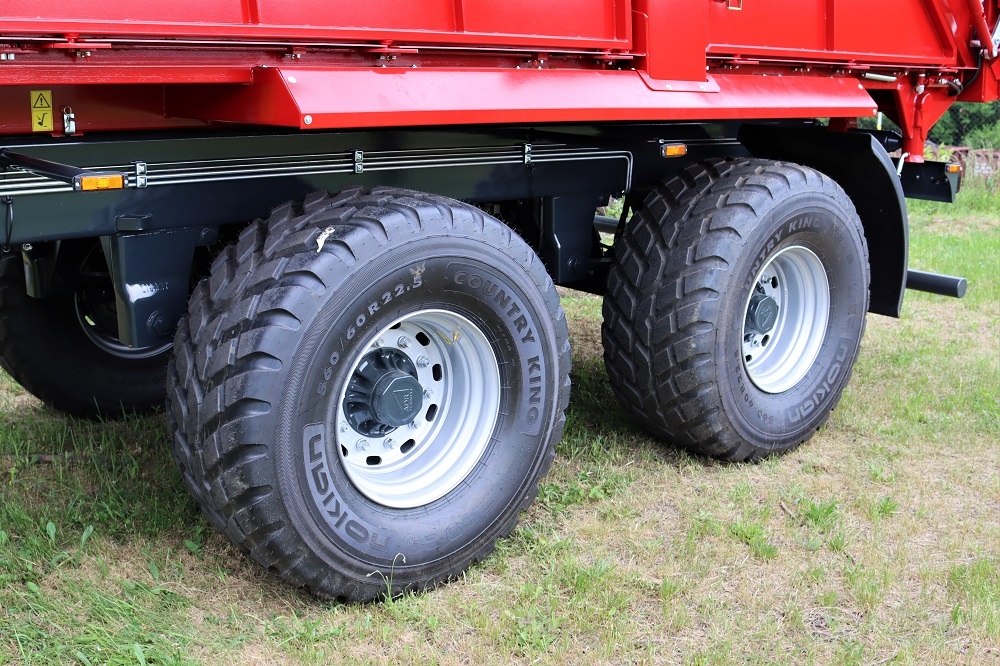

  • wheels 560/60 R22,5 161D Country King TL
  • wheels 560/60 R22.5 Michelin
Technical parameters
Number of axles
2
Technically permissible mass (kg)
23 000 - 24 000
Max. payload (kg)
18 000
Body Capacity - 1.50 m (m3)
21,9
Volume Extension 0,4 m (m3)
5,8
Volume Extension 0,6 m (m3)
8,8
Platform width (m)
2,25
Length of usable space (m)
6,49
Overall length (m)
8
Overall width - basic (m)
2,55
Maximum speed (km/h)
40 / 60

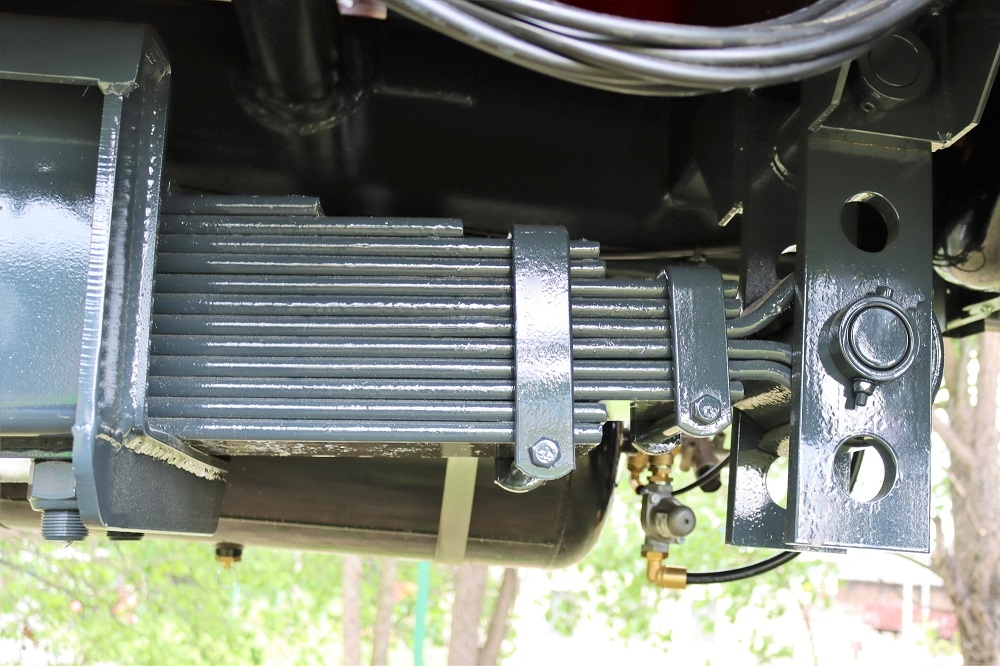

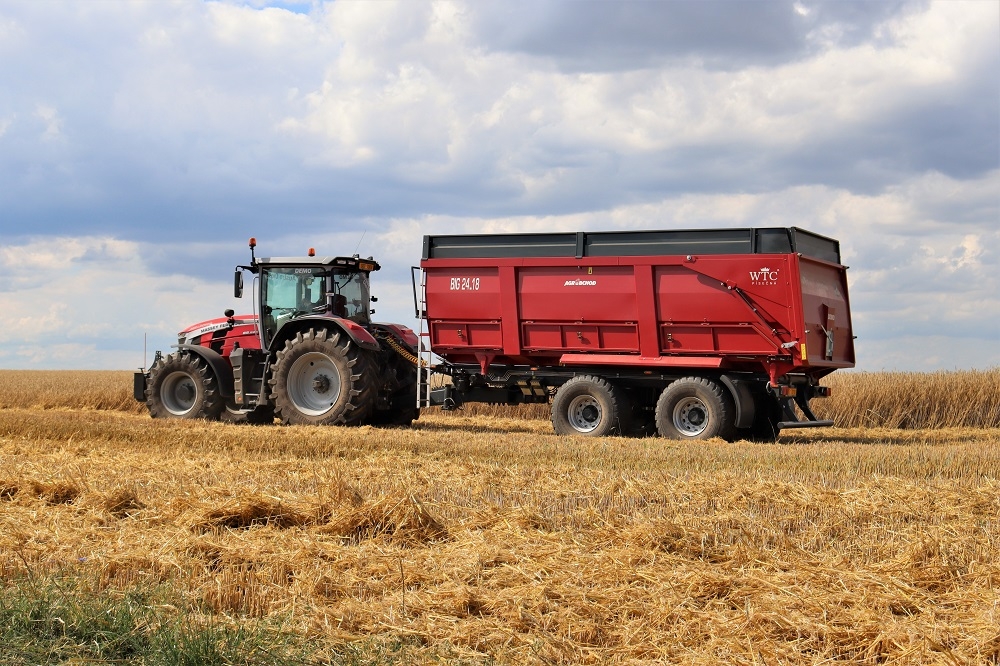

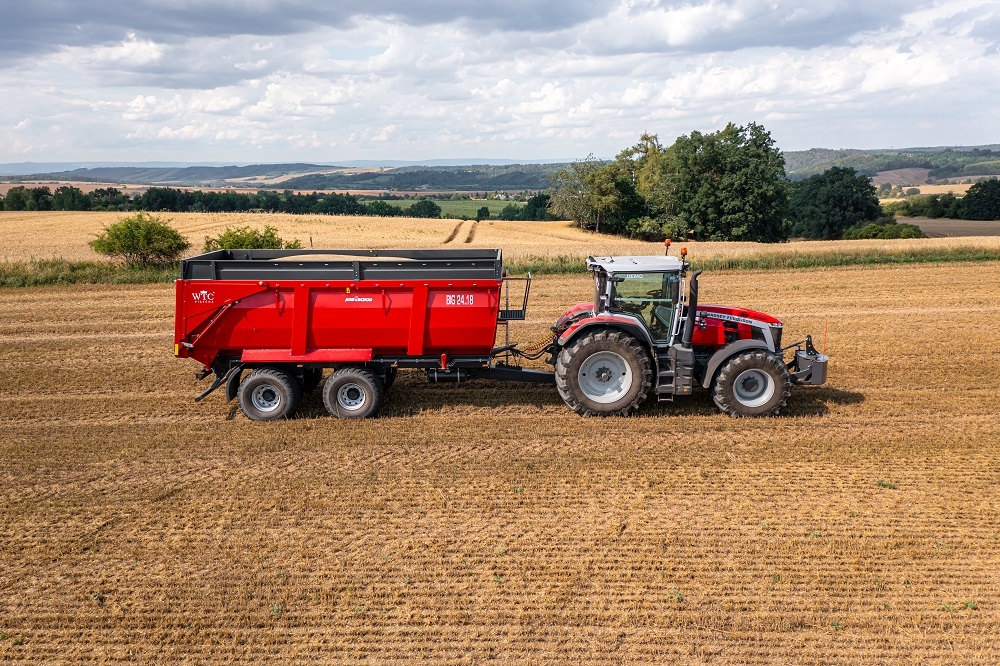

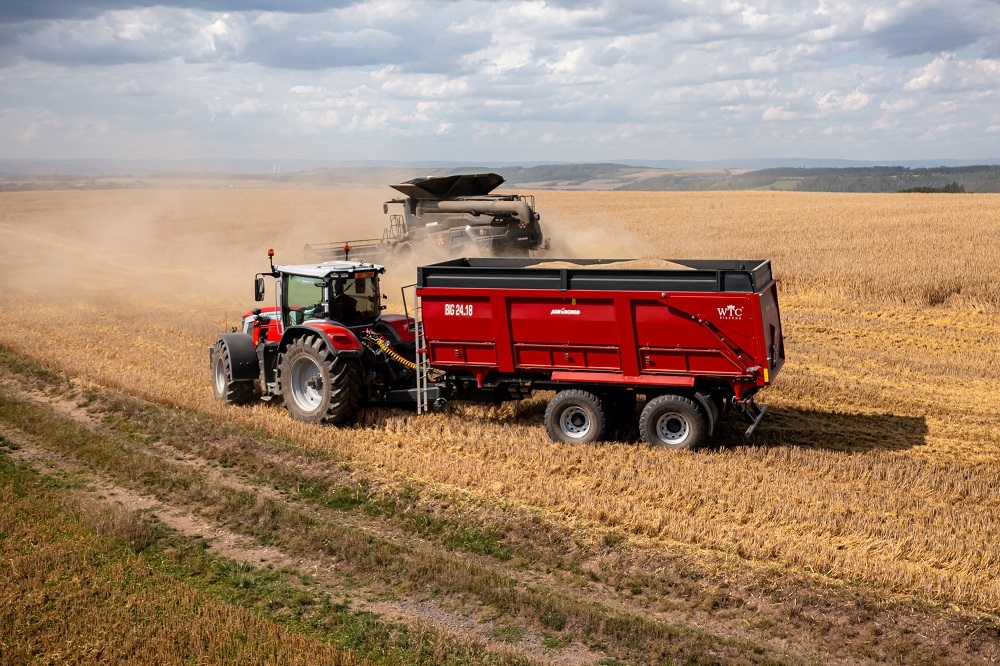

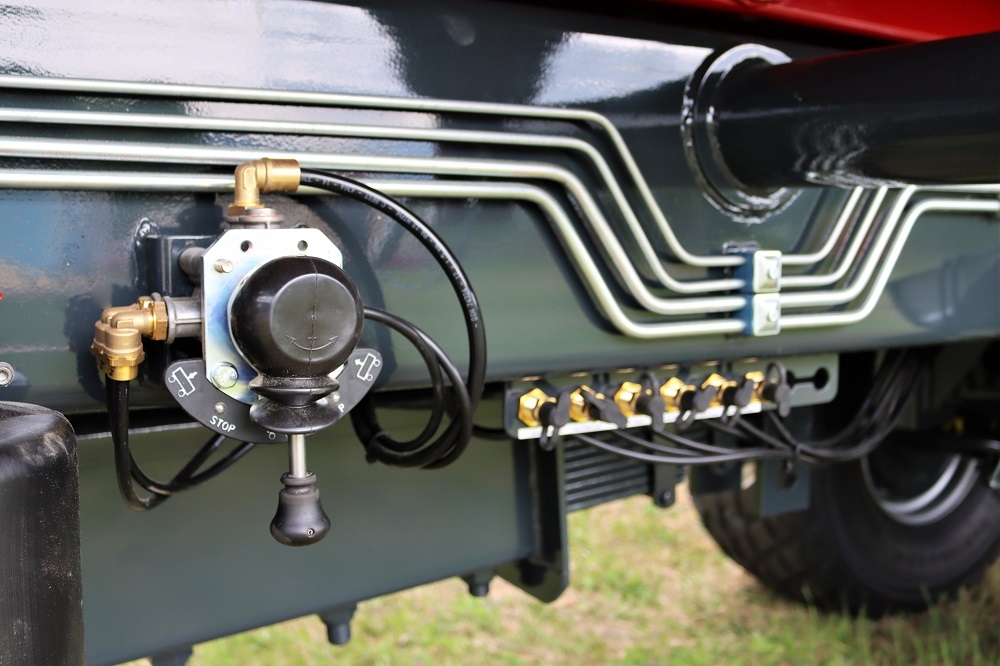

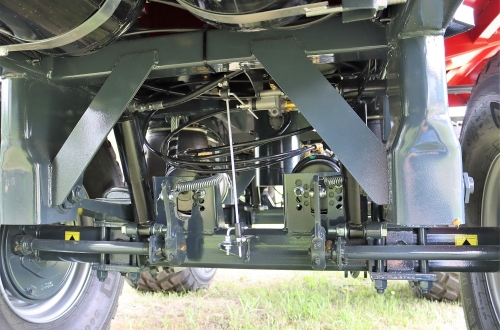

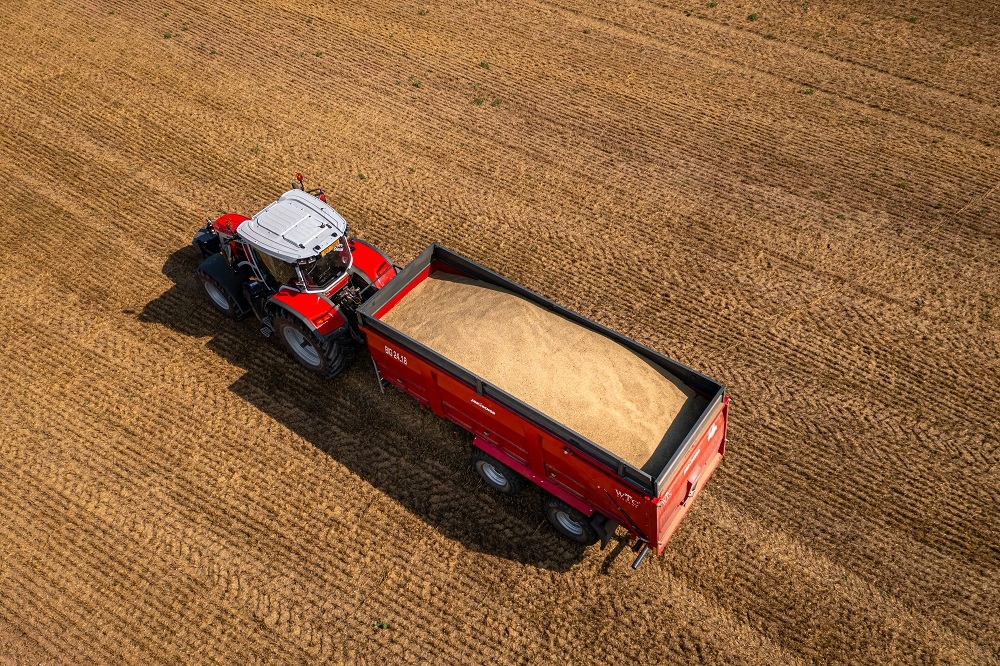

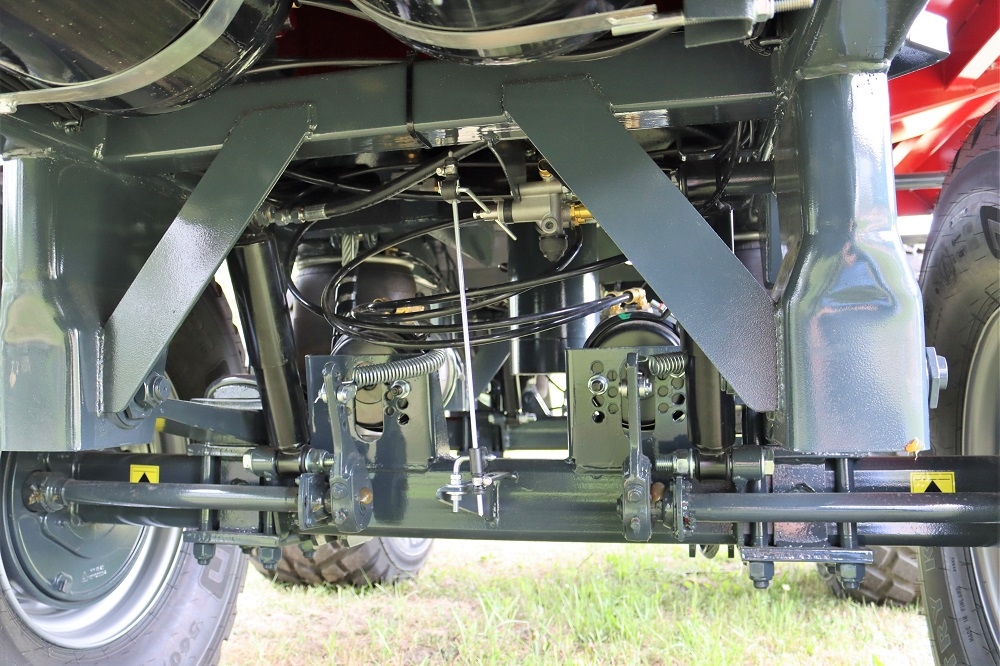

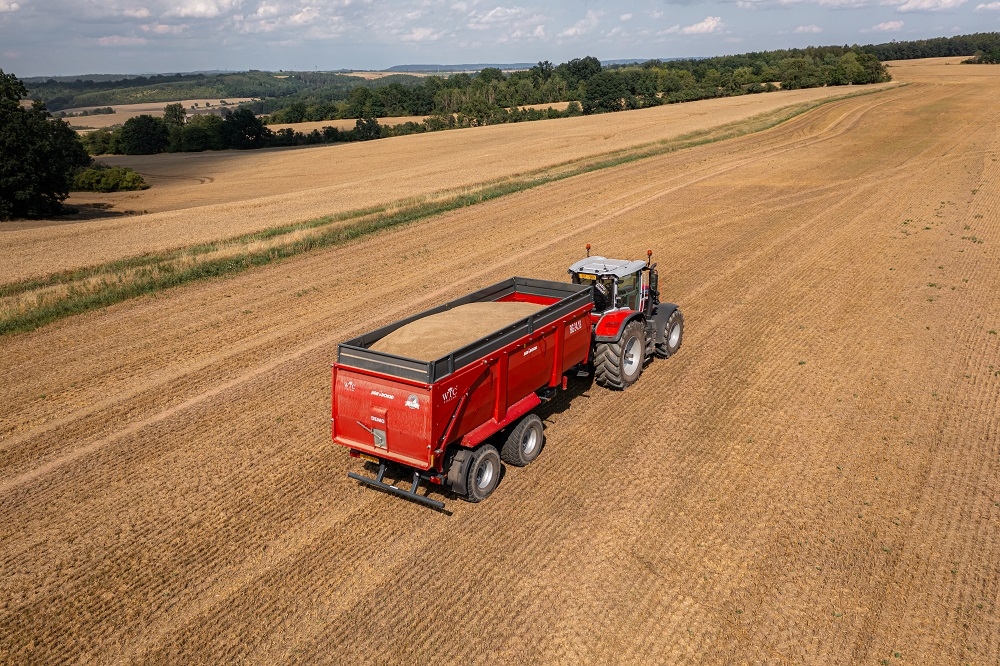

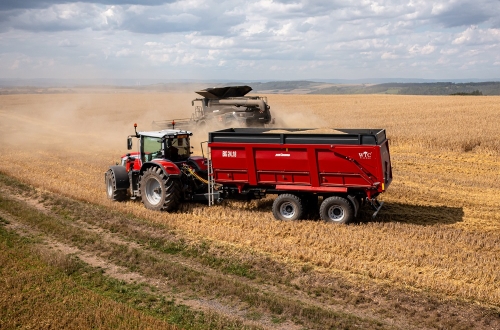

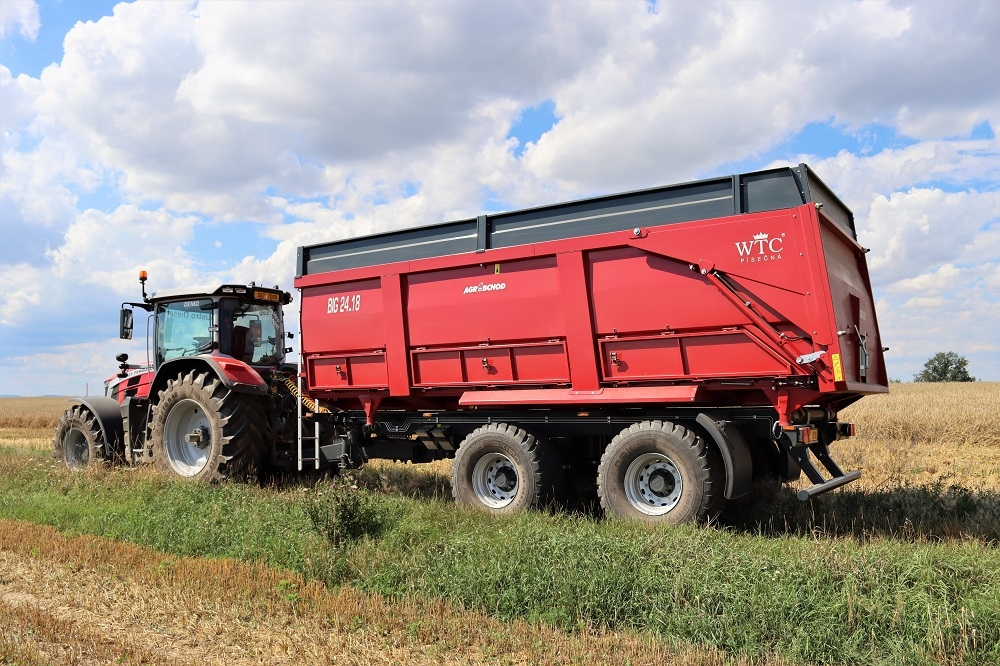

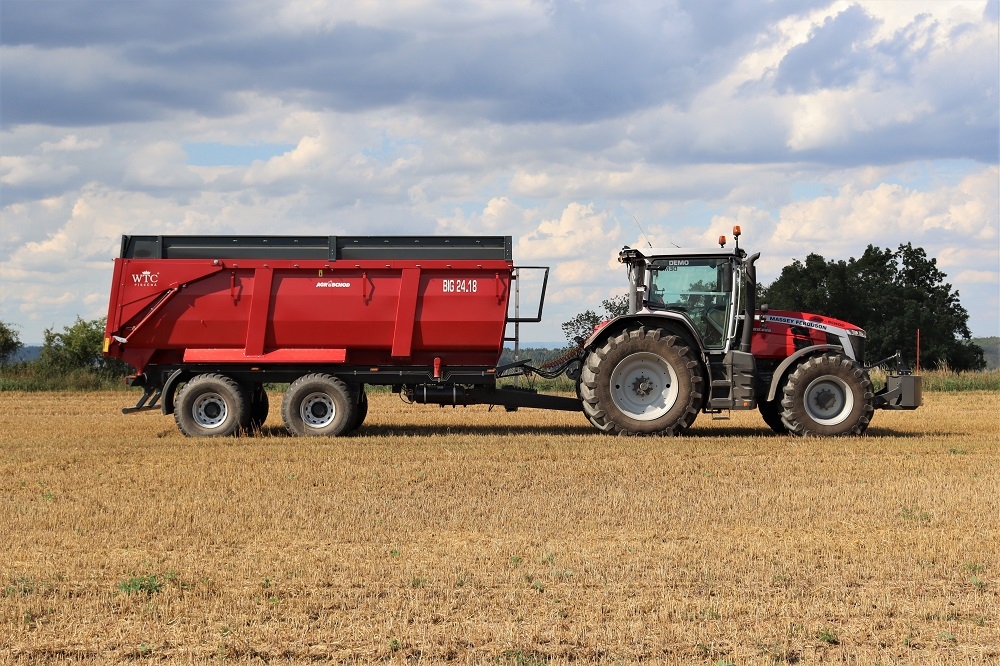

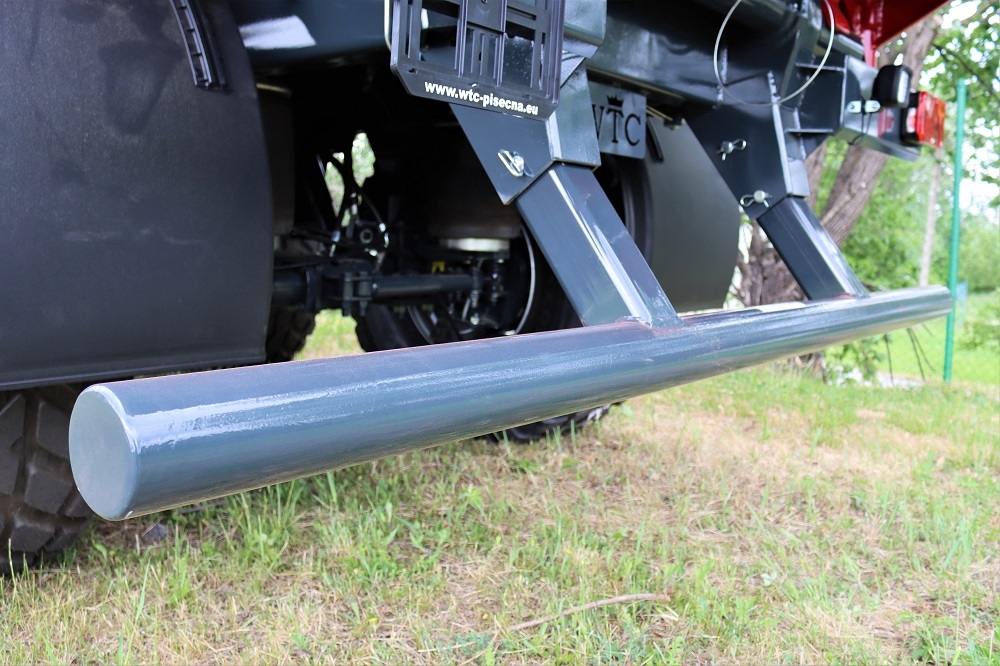

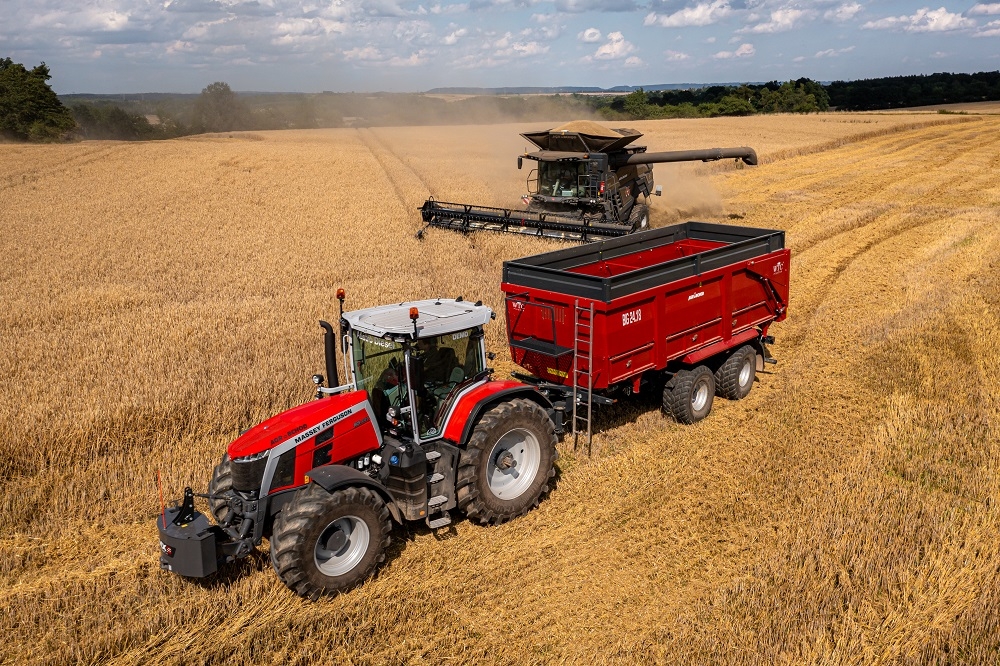

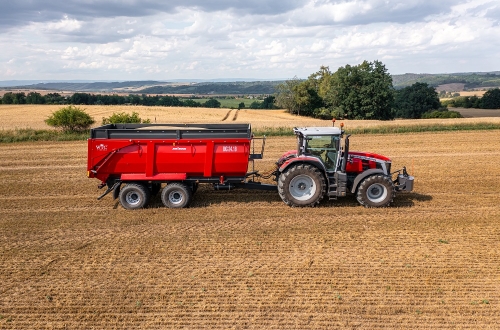

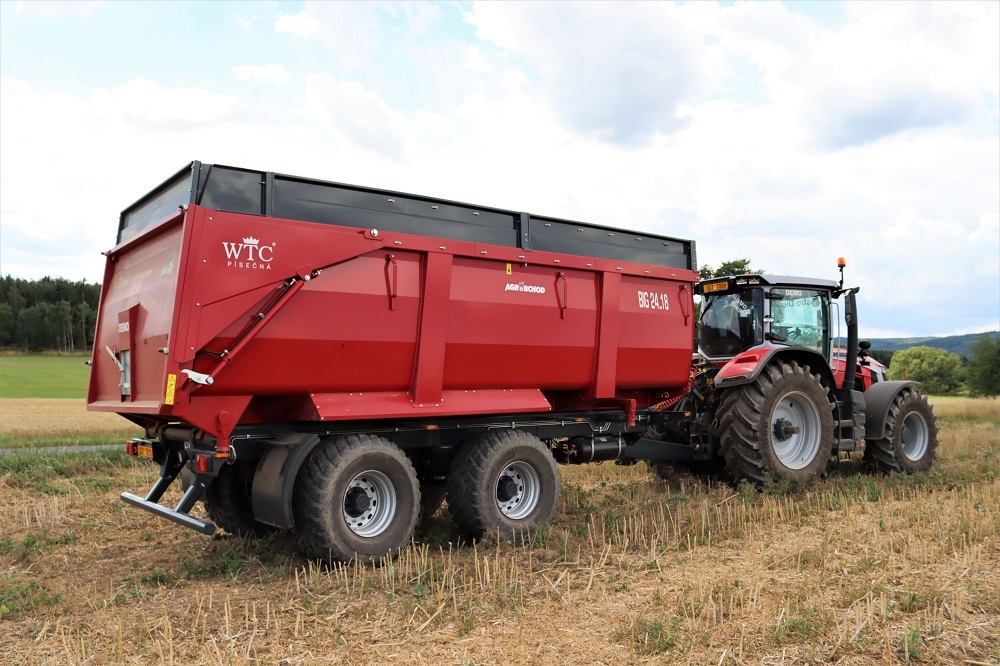

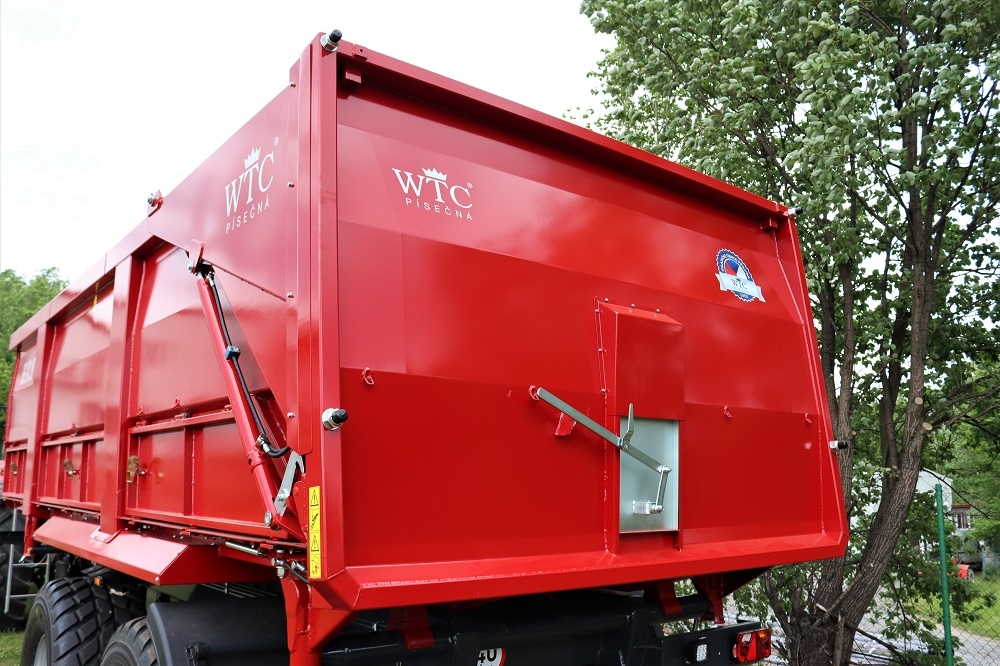

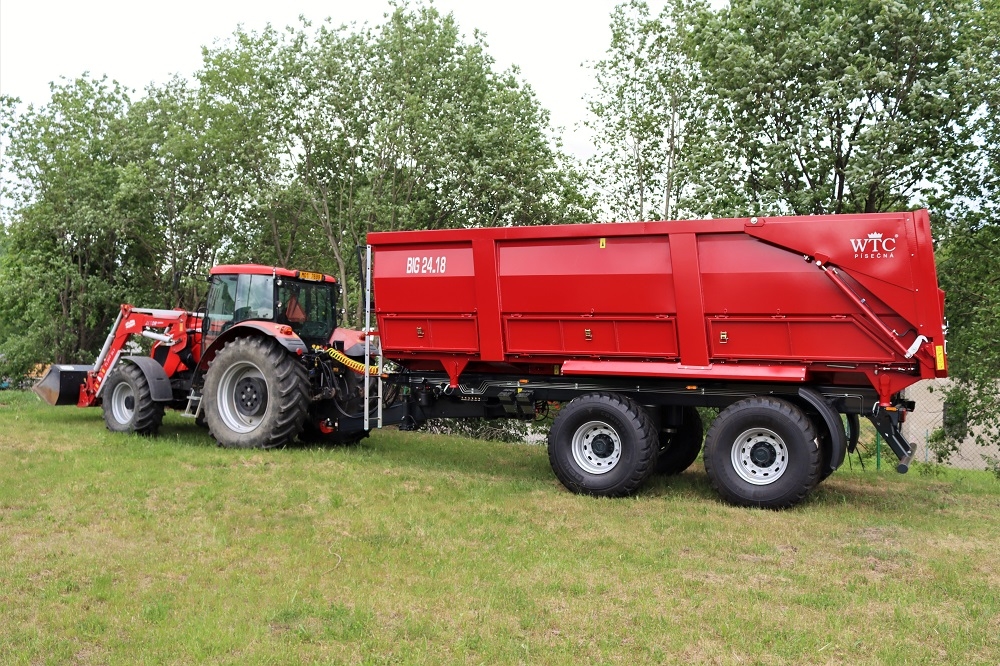

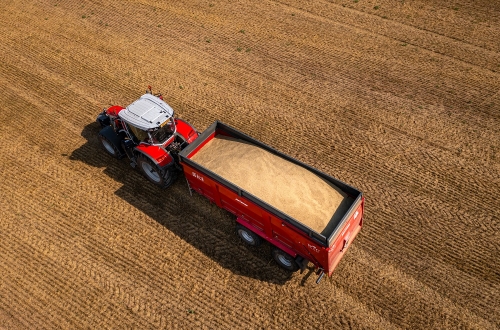

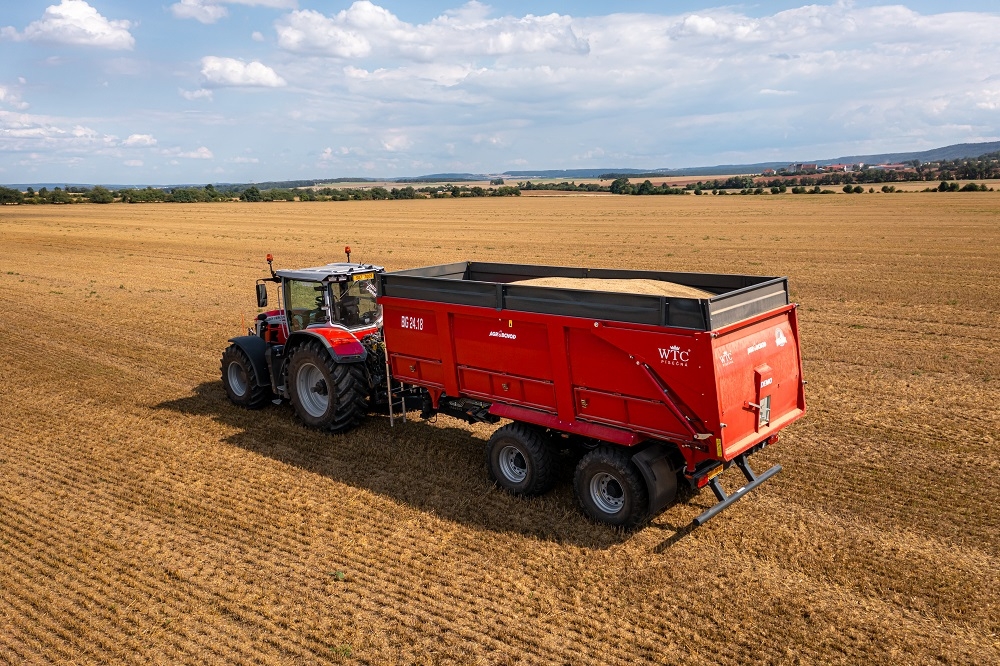

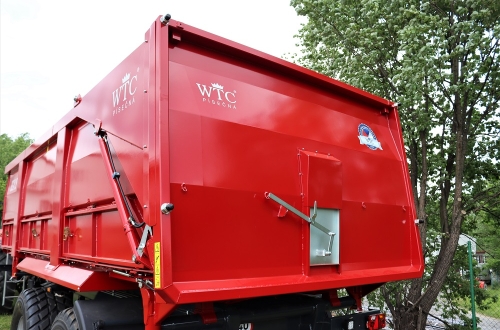

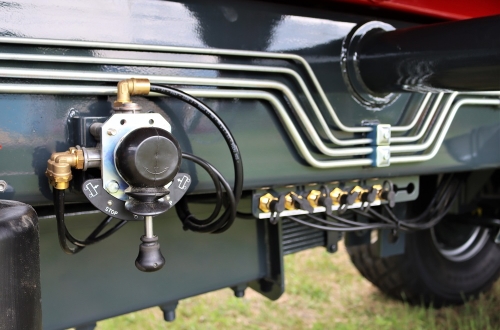

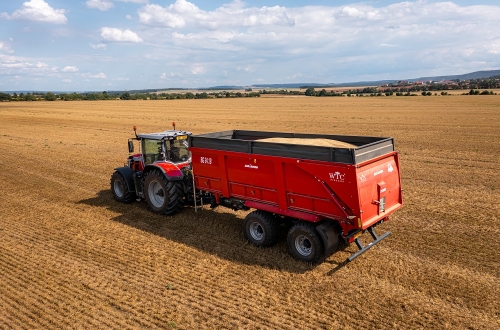

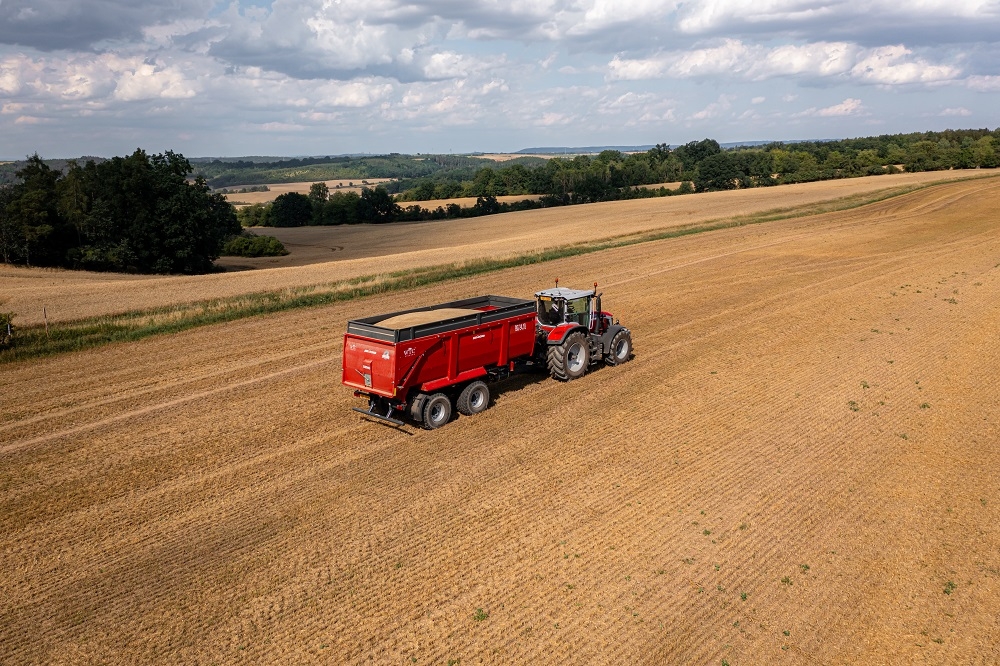

Photo gallery
