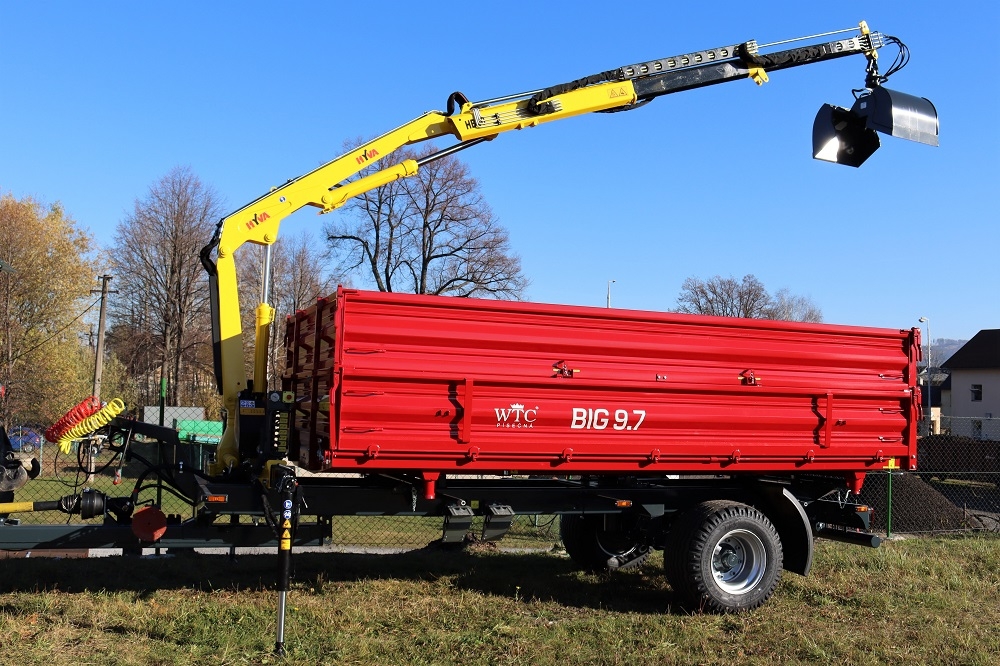

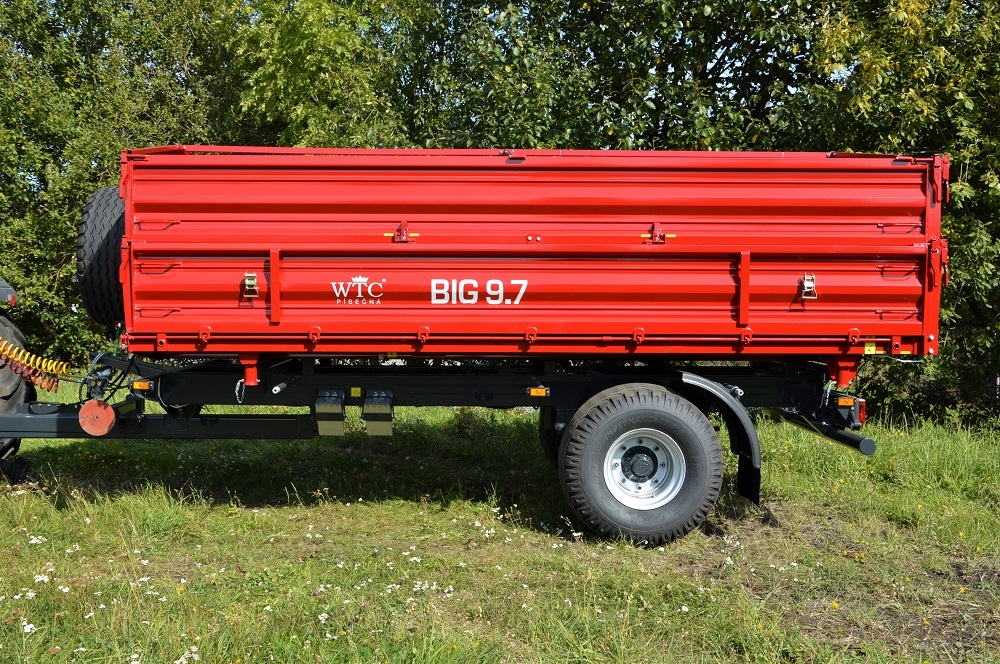

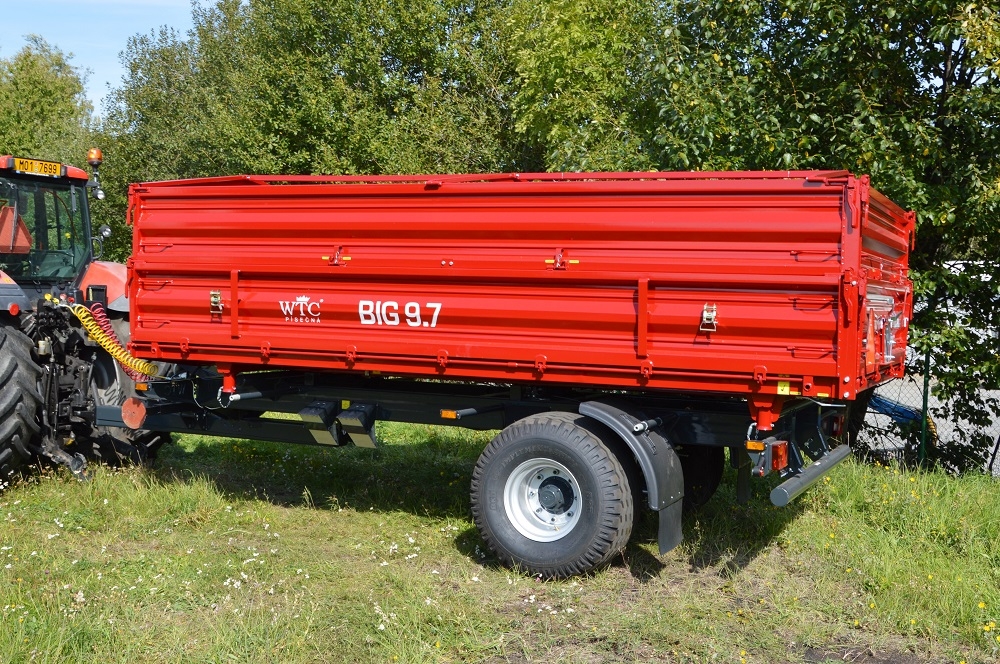

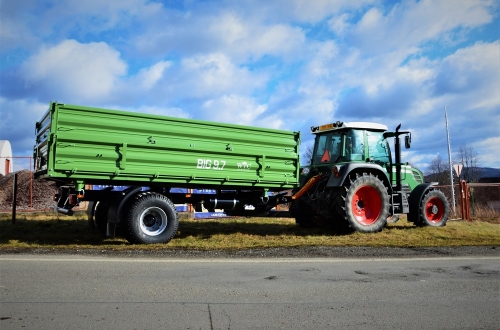

Tractor trailer BIG 9.7
Standard equipment
simple suspended axle ADR
total permissible weight 9 000 kg
loading capacity 6 780 kg
loading area: 4,6 x 2,34 m
bed height from the ground 1230 mm
side board 500 mm = 5,5 m³
mechanical drawbar support with wheels
automatic parking brake
automatic brake load sensing controller
adjustment for superstructures
rear dump hatch
towing hitch 50/40 mm/K-80
speed 40 km/h
polyurethane paint
Optional equipment
ADR overrun brake (40 km/h)
tailpiece 0,5 m = 5,5 m3
standard rolling tarpaulin
colour on request
swivel hitch Scharmüller 50 mm
spare wheel holder
wheels 19/45-17 22 PR BKT
wheels 19/45-17 18 PR MITAS
wheels 500/50-17 18 PR MITAS
wheels 500/50-17 18 PR BKT
wheels 385/55 R 19,5 radial
wheels 445/45 R 19,5 radial
Technical parameters
Number of axles
1
Technically permissible mass (kg)
9 000
Payload (kg)
6 780
Operating weight (kg)
2 000
Body Capacity - 1 m (m3)
11
Platform width (m)
2,34
Length of usable space (m)
4,6
Overall length (m)
6,37
Overall width - basic (m)
2,5
Maximum speed (km/h)
40

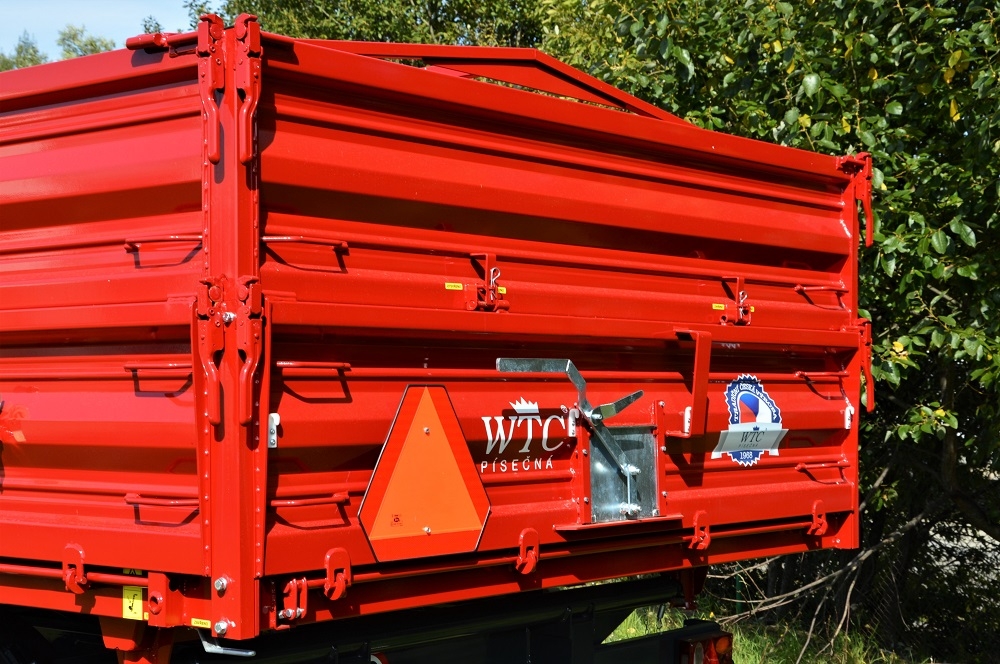

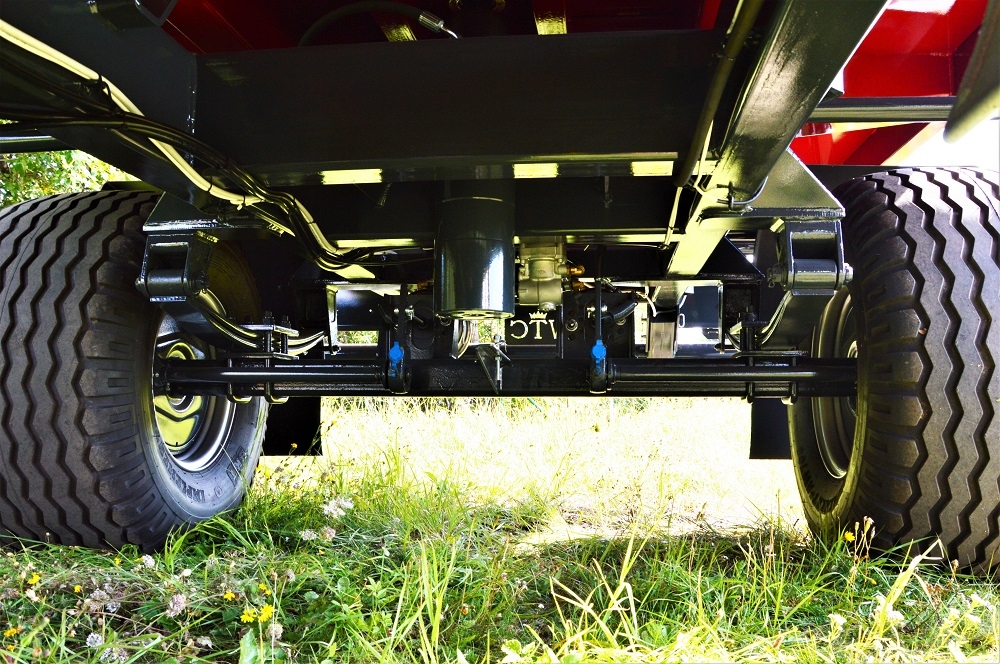

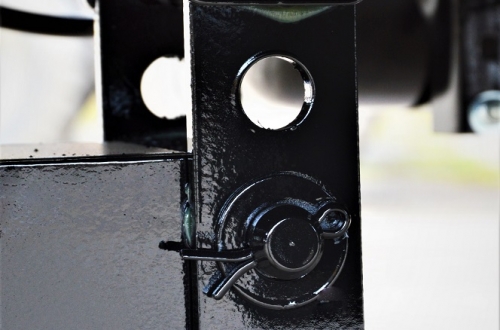

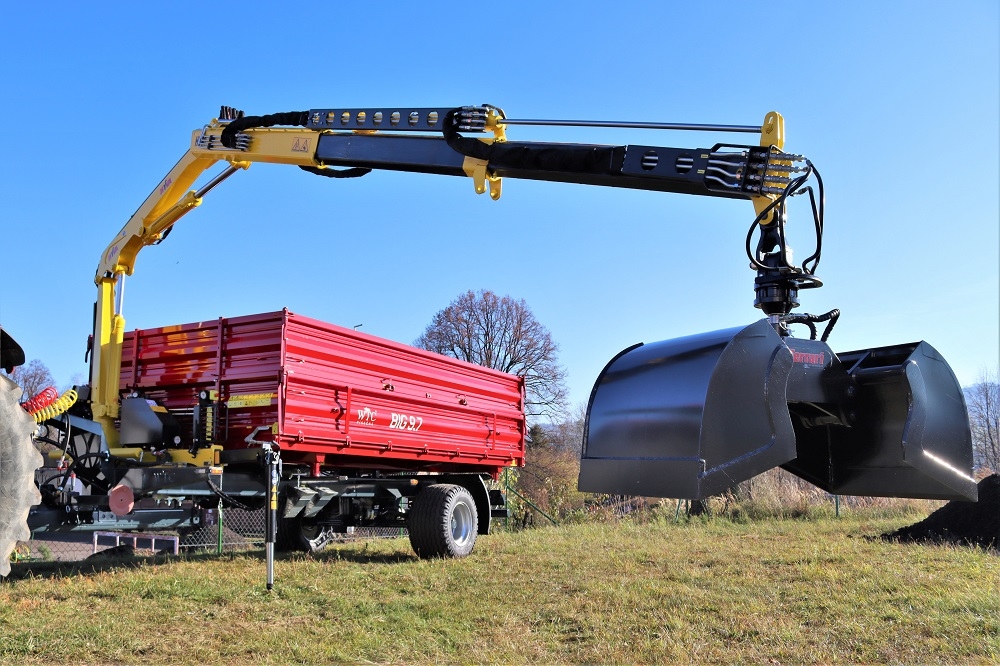

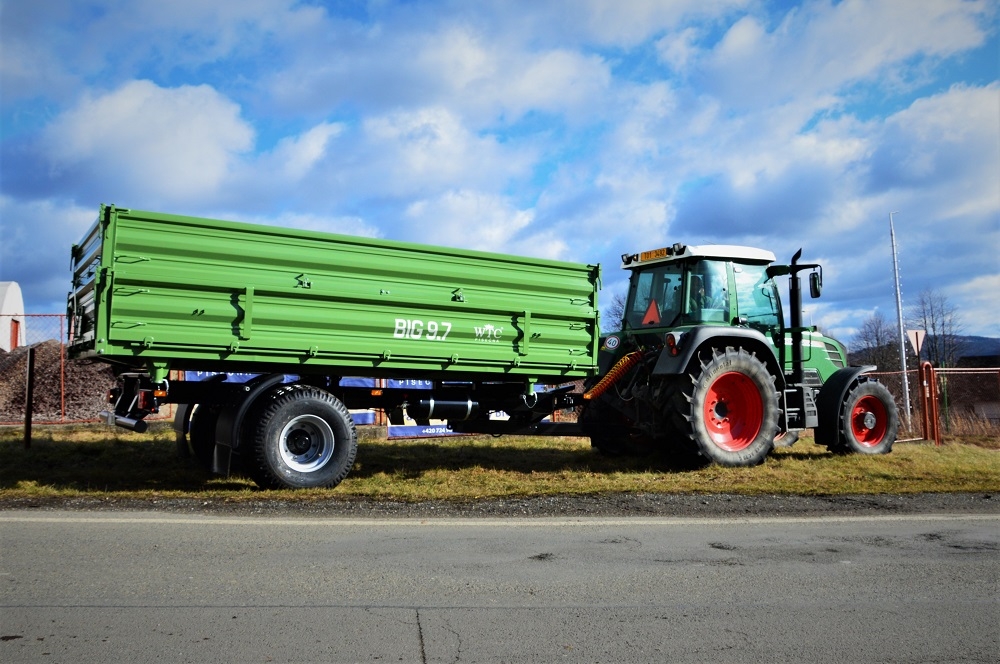

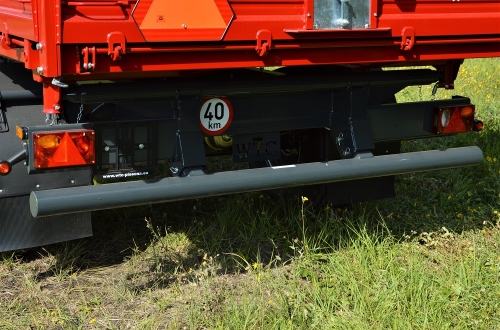

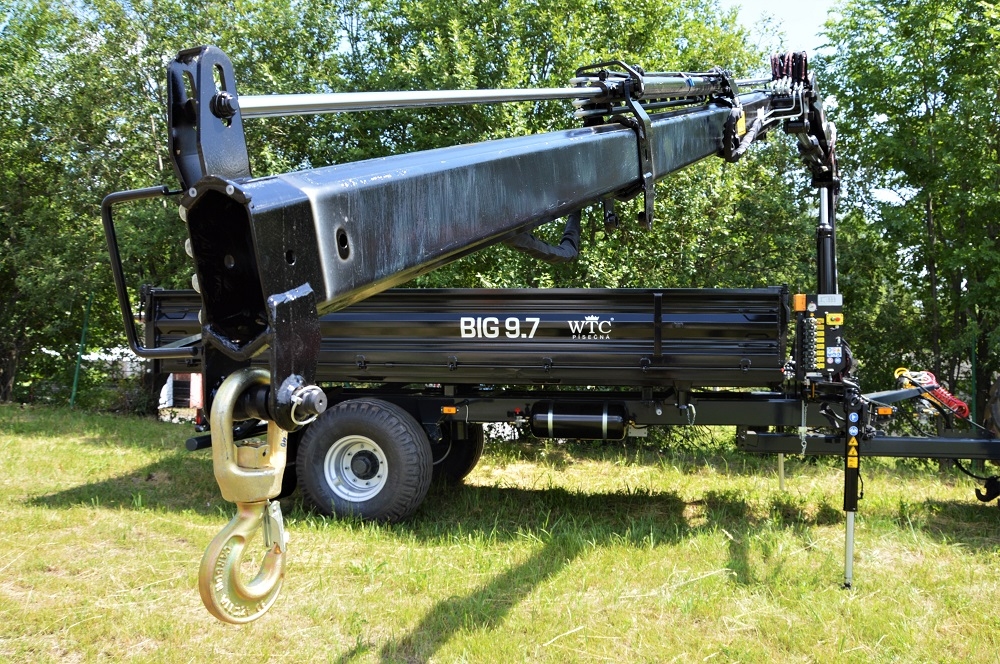

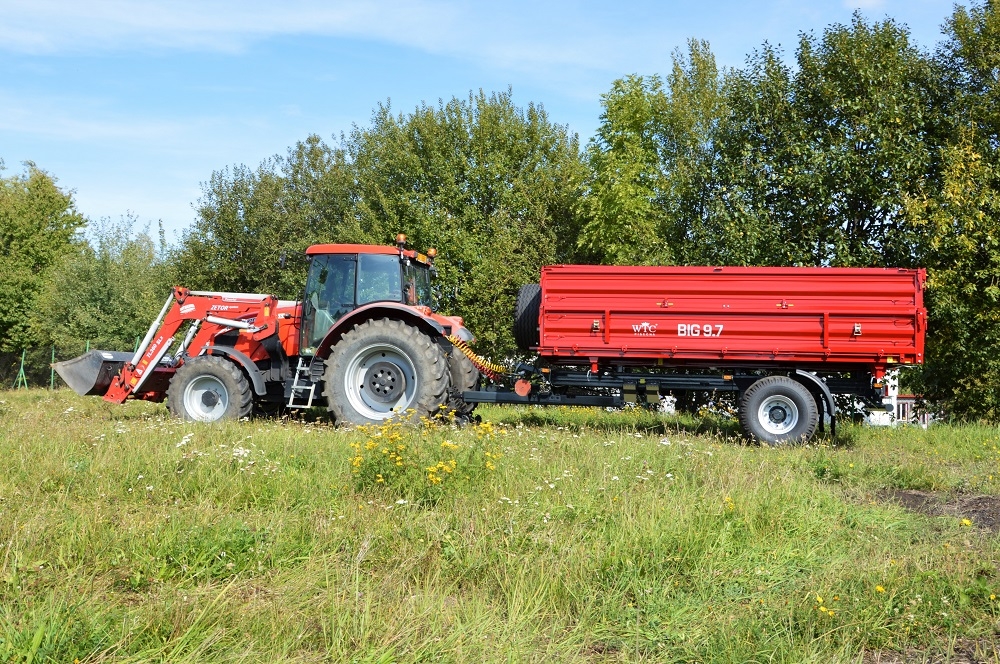

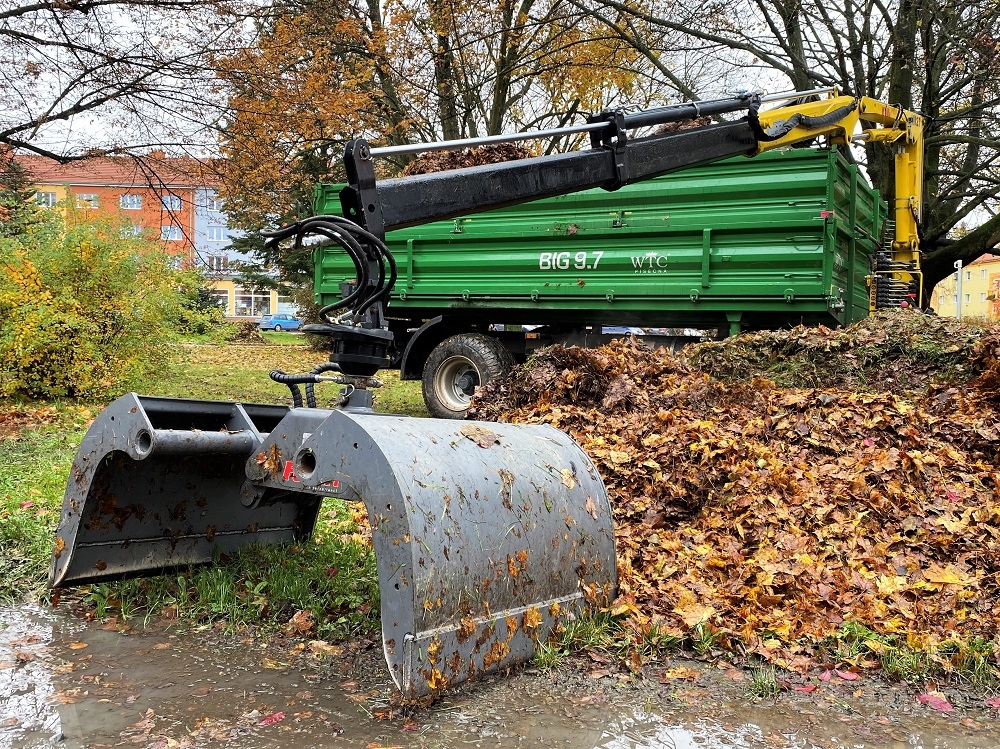

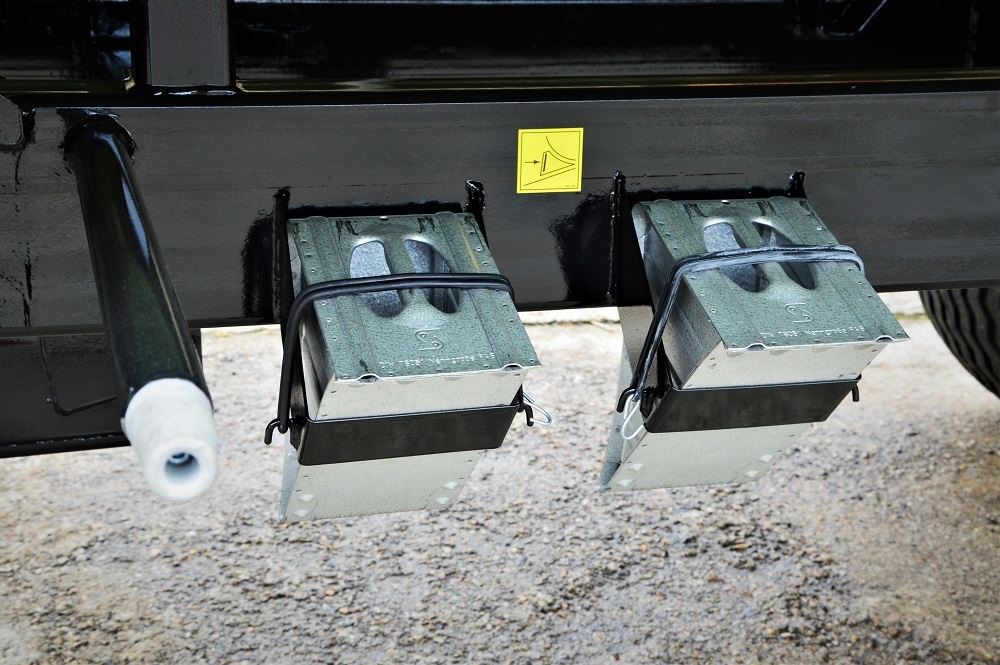

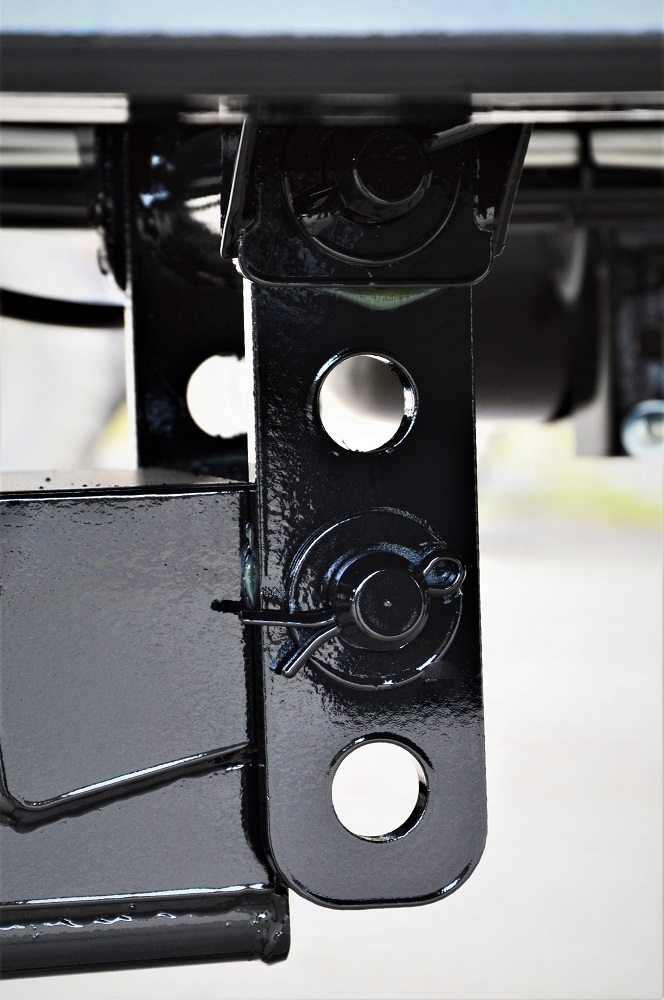

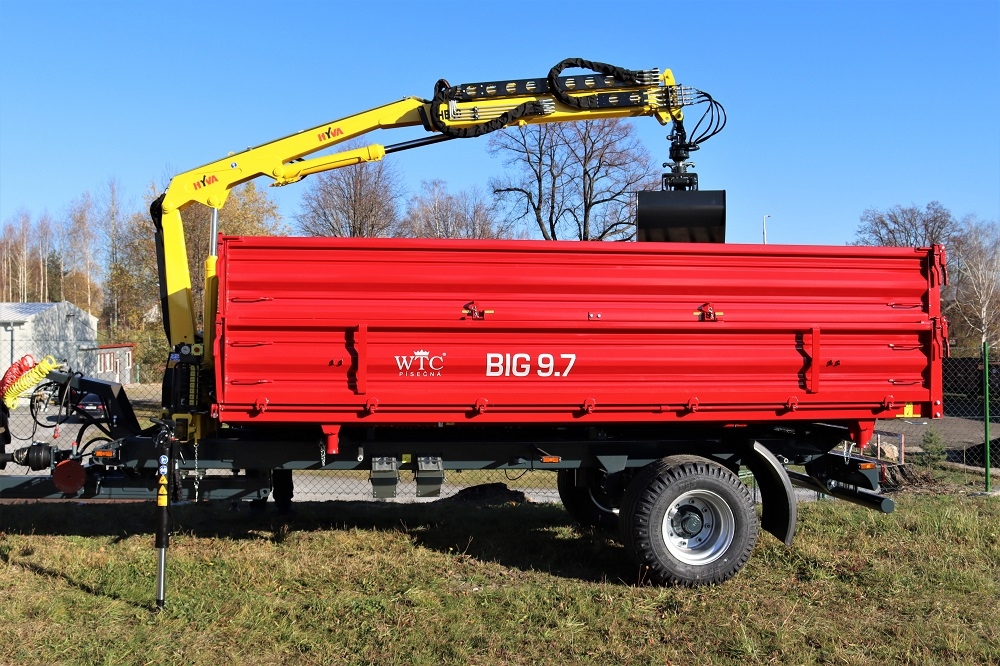

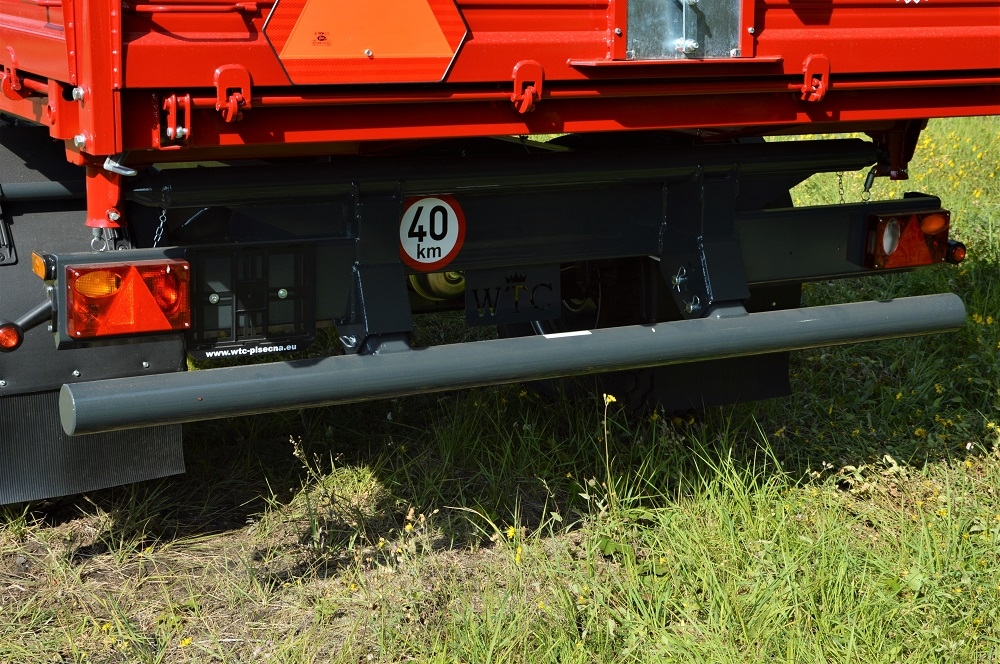

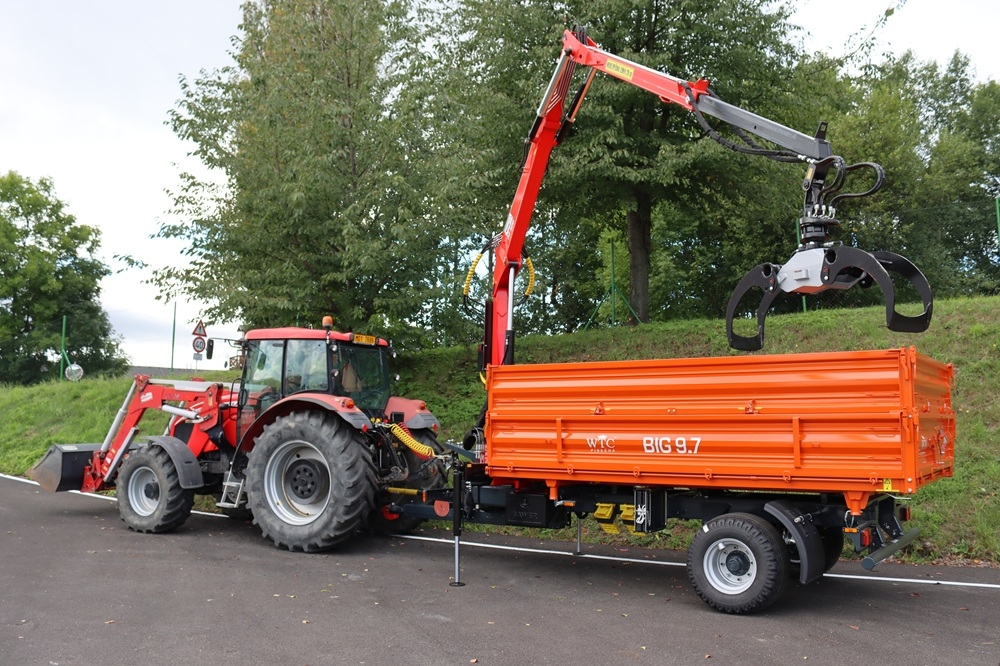

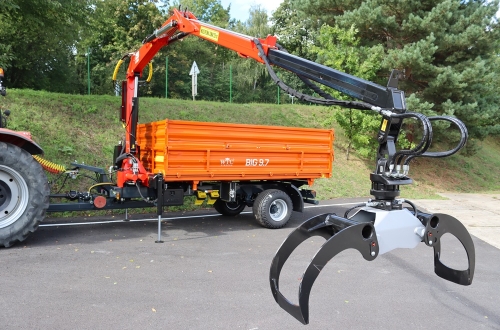

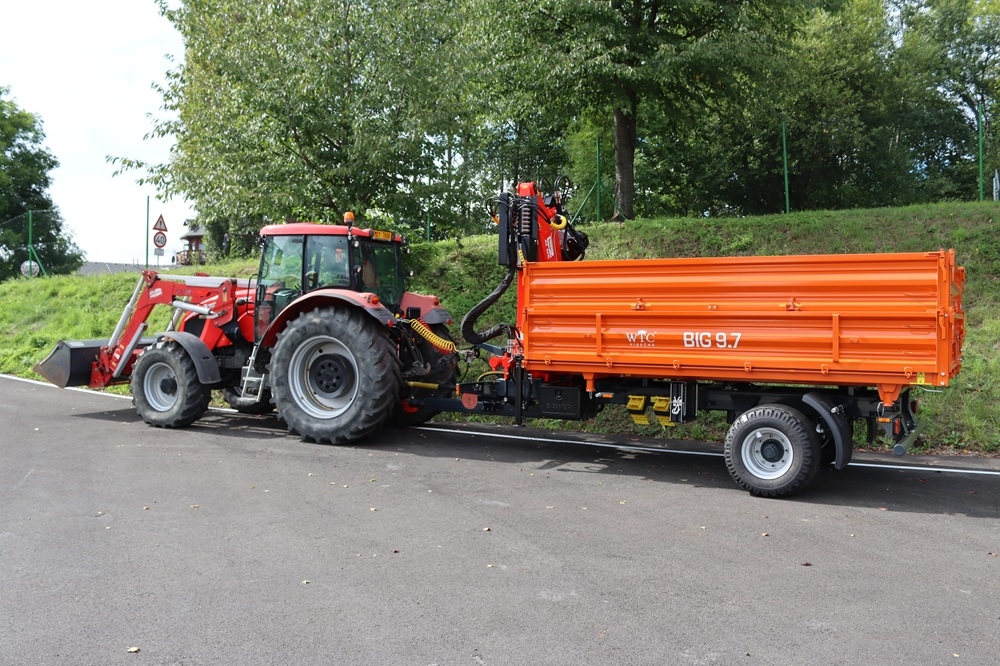

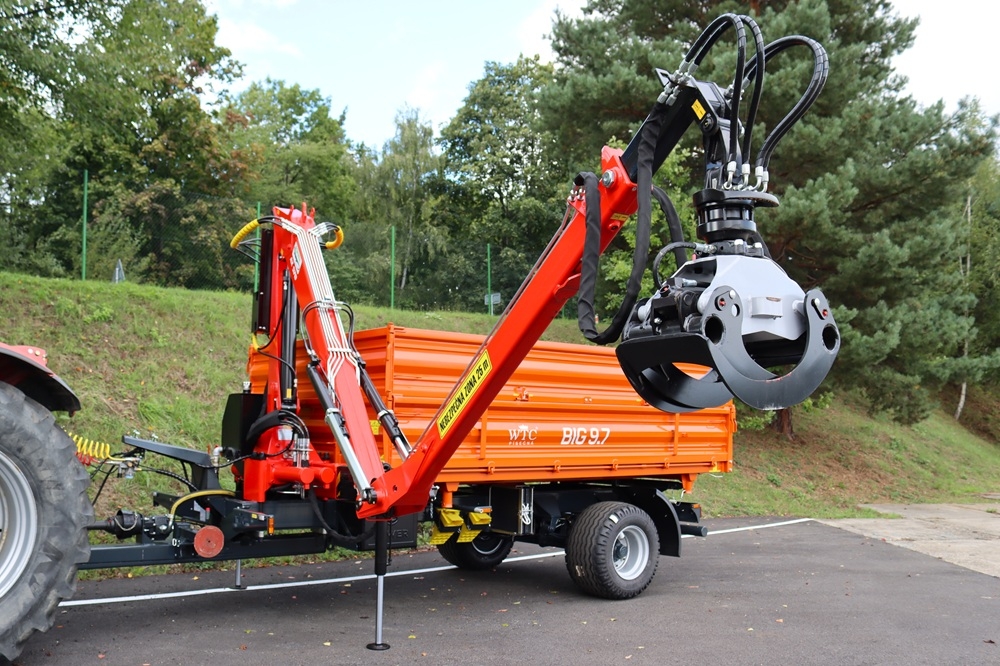

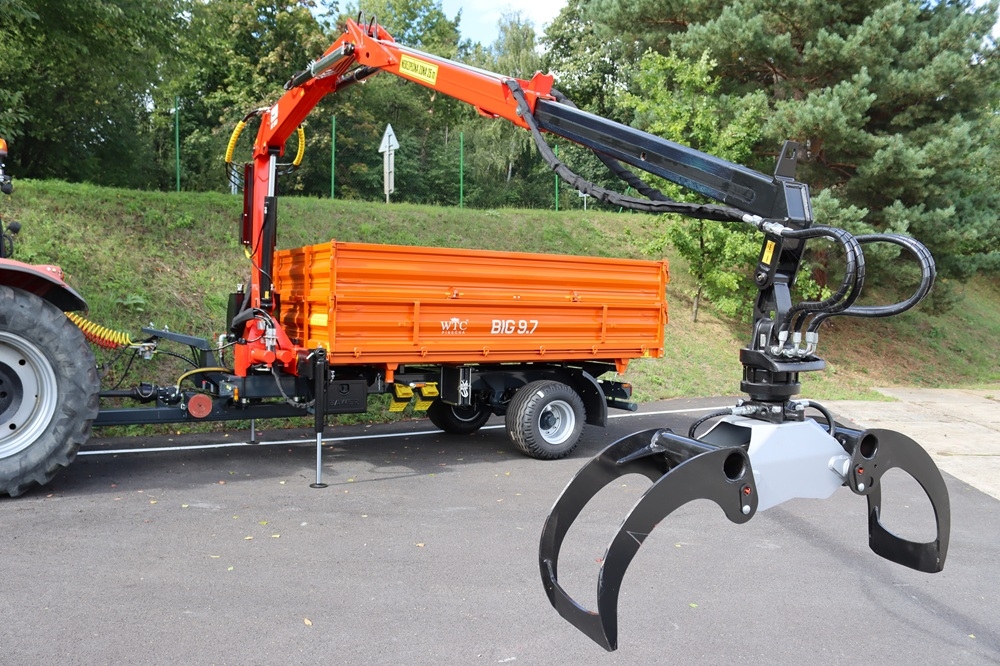

Photo gallery
